TAD · Evolution · Floorstander

Evolution One TX

Product description

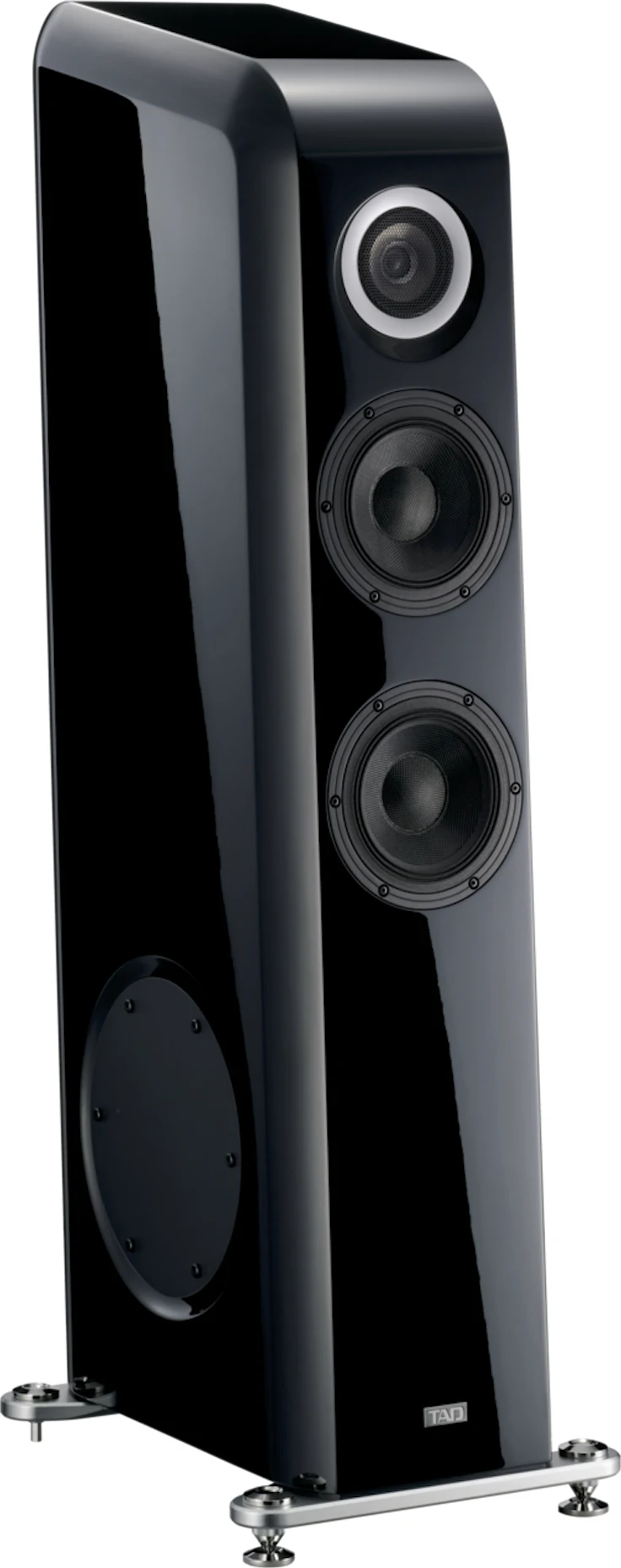

A three-way Evolution floorstander built on the CST coaxial driver — a 25 mm beryllium tweeter at the centre of a 90 mm magnesium midrange, over twin 160 mm aramid woofers with a down-firing port. The point-source coherence of the Reference line in a domestic-sized tower, hand-assembled in Japan.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Evolution One TX29 Hz60 kHz88 dB4 Ω471 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#468 of 648 floorstander
PowerPassive
Height1215 mm
Width350 mm
Depth512 mm
Footprint1792 cm²
Space taken217.7 L
Weight46 kg
EnclosureBass reflex, down-firing port
Drivers2× 160 mm woofer (aramid), 1× 90 mm midrange (magnesium), 1× 25 mm tweeter (beryllium)
Crossover frequency420 / 2500 Hz
Frequency response29–60000 Hz
Sensitivity88 dB
Impedance4 Ω
Power handling200 W
MAP (USD)$27,995 / pair
Where to buyCheck availability ↗
Manufacturertechnicalaudiodevices.com ↗
Product pageOpen product page ↗
