Technics · SB · Floorstander
SB-G90M2
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

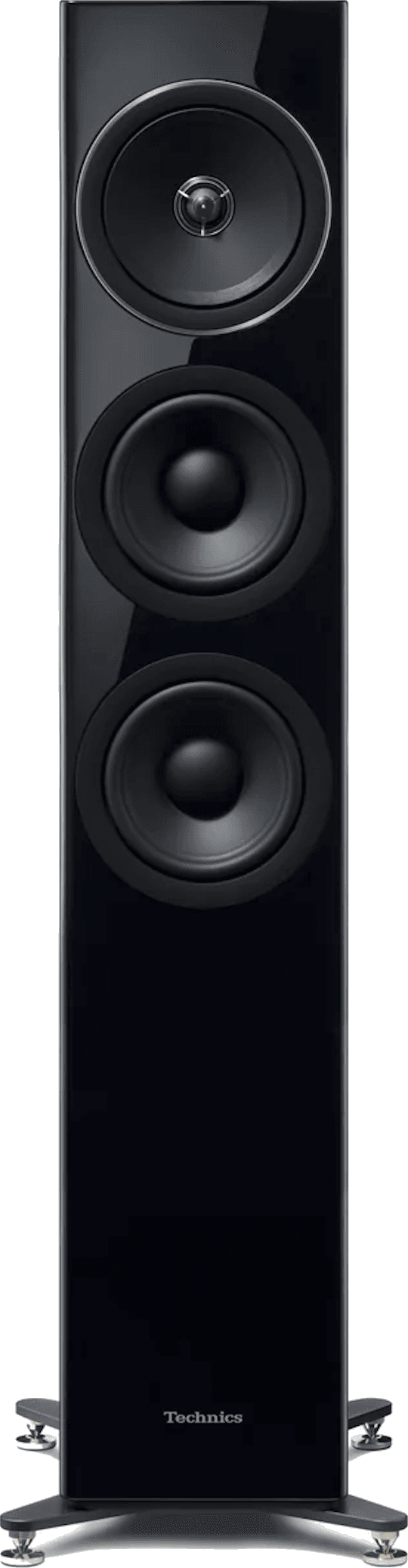

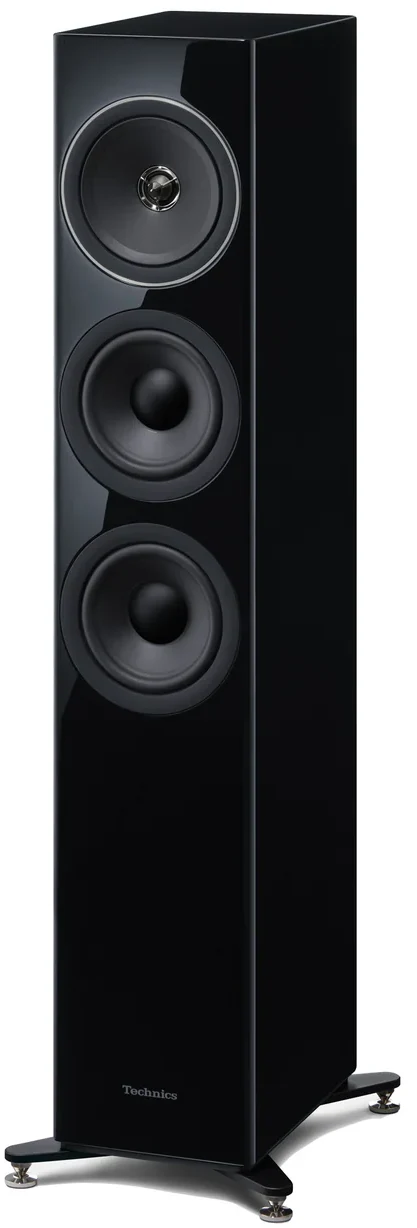

Three-way passive floorstander built around Technics' Advanced Phase Precision Driver — a coaxial 160 mm midrange with the 25 mm aluminium-dome tweeter mounted concentrically at its acoustic centre. Two additional 160 mm aluminium-cone woofers handle the bass, vented through a bass-reflex cabinet engineered to suppress internal standing waves. Bi-wiring terminals split the bass from the coaxial mid/high section.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #183 of 340 floorstander |
| Power | Passive |
| Height | 1111 mm |
| Width | 289 mm |
| Depth | 365 mm |
| Weight | 35.4 kg |
| Enclosure | bass-reflex |
| Drivers | 1× 25 mm tweeter (aluminium dome), 1× 160 mm midrange (aluminium cone), 2× 160 mm woofer (aluminium cone) |
| Crossover frequency | 500 / 3400 Hz |
| Frequency response | 33–90000 Hz (±10 dB) |
| Sensitivity | 86 dB |
| Impedance | 4 Ω |
| Recommended amp | 40–200 W |
| MAP (USD) | $3,999.99 each |
| Where to buy | Check availability ↗ |
| Manufacturer | us.technics.com ↗ |
| Product page | Open product page ↗ |
