Triangle · Magellan 40th · Bookshelf
Duetto 40th
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description

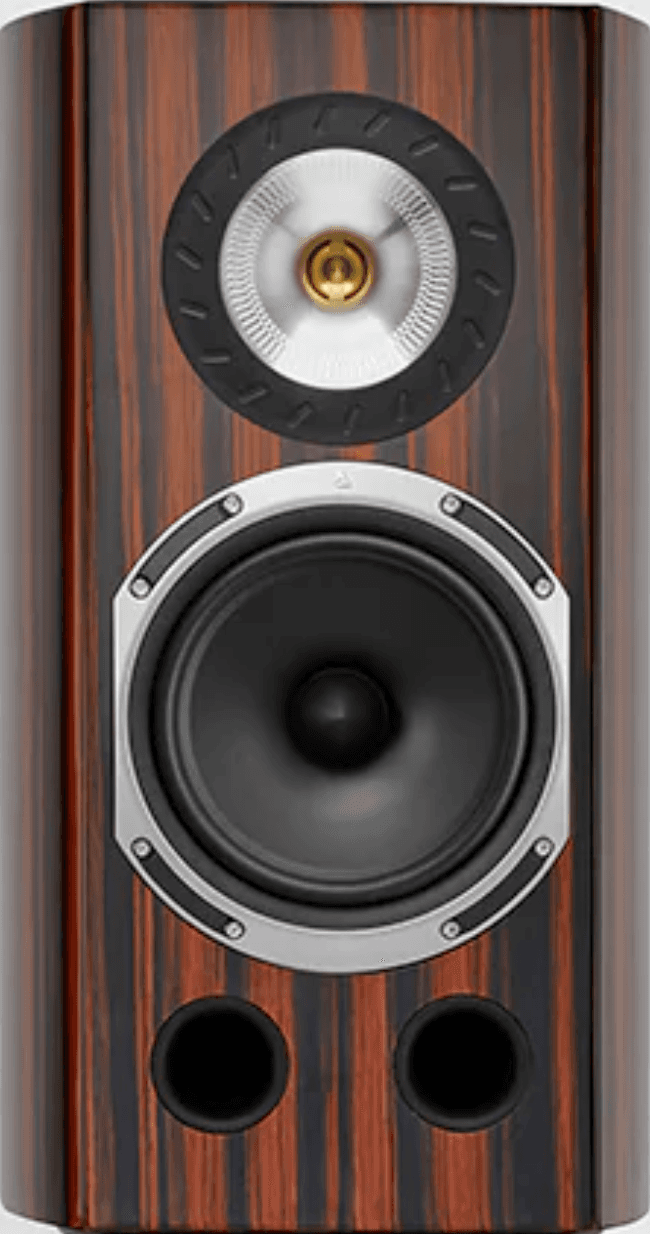

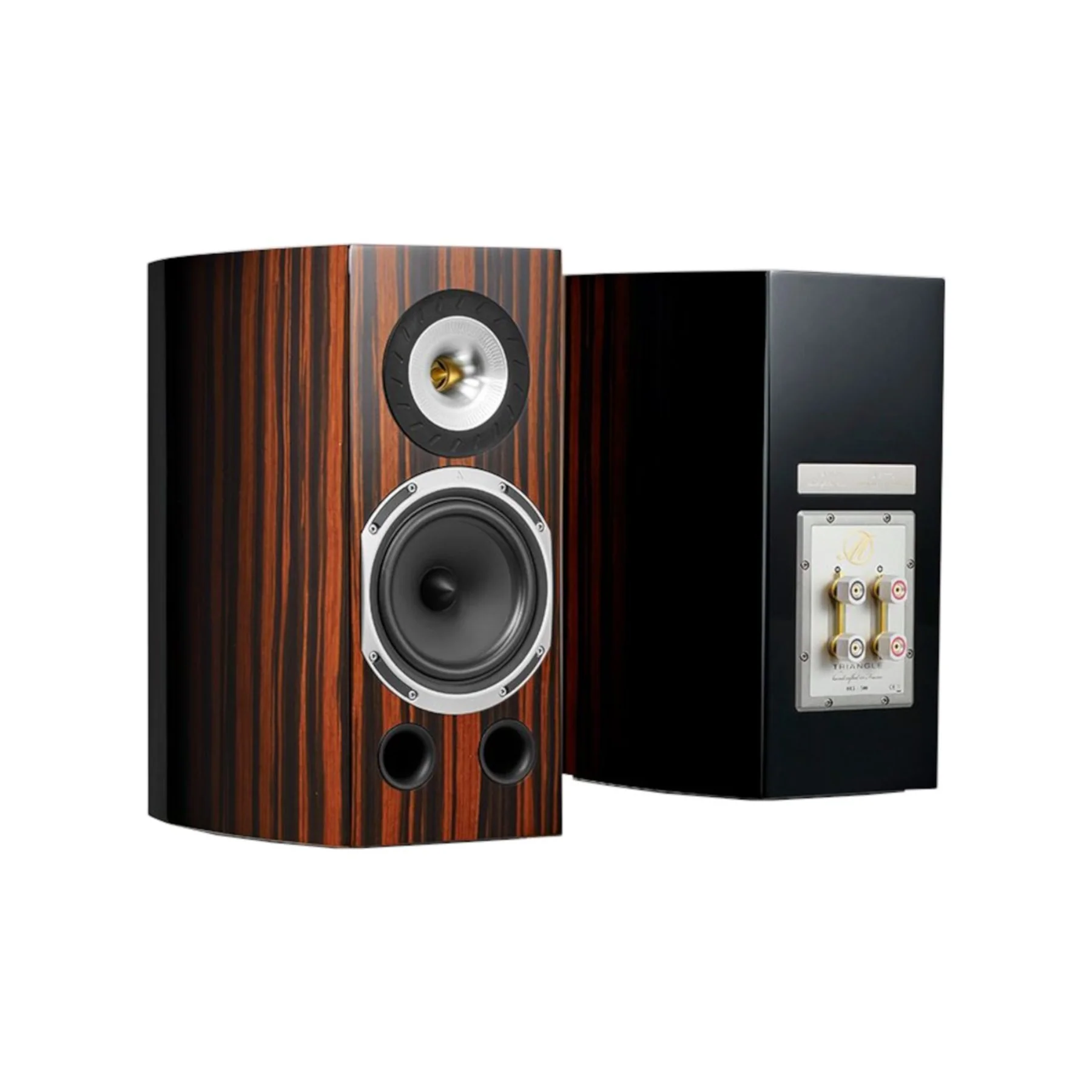

40th-Anniversary edition of the Magellan Duetto bookshelf — a 25 mm magnesium-dome TZ2900PMMG compression tweeter horn-loaded with phase plug above a 165 mm latex-damped cellulose-pulp paper mid-bass driver in a front-ported curved cabinet. Reaches 40 Hz at the low end and 30 kHz at the top with 88 dB sensitivity on an 8 Ω load (3.4 Ω min), 30-200 W amp window.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #103 of 120 bookshelf |
| Power | Passive |
| Height | 460 mm |
| Width | 242 mm |
| Depth | 350 mm |
| Weight | 16.8 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (magnesium-dome compression diaphragm), 1× 165 mm mid-bass (natural cellulose-pulp paper cone) |
| Frequency response | 40–30000 Hz (±3 dB) |
| Sensitivity | 88 dB |
| Impedance | 8 Ω (min 3.4 Ω) |
| Power handling | 80 W |
| Recommended amp | 30–200 W |
| MAP (USD) | $6,500 / pair |
| Manufacturer | trianglehifi.com ↗ |
| Product page | Open product page ↗ |
