Triangle · Magellan 40th · Floorstander
Magellan Quatuor 40th
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

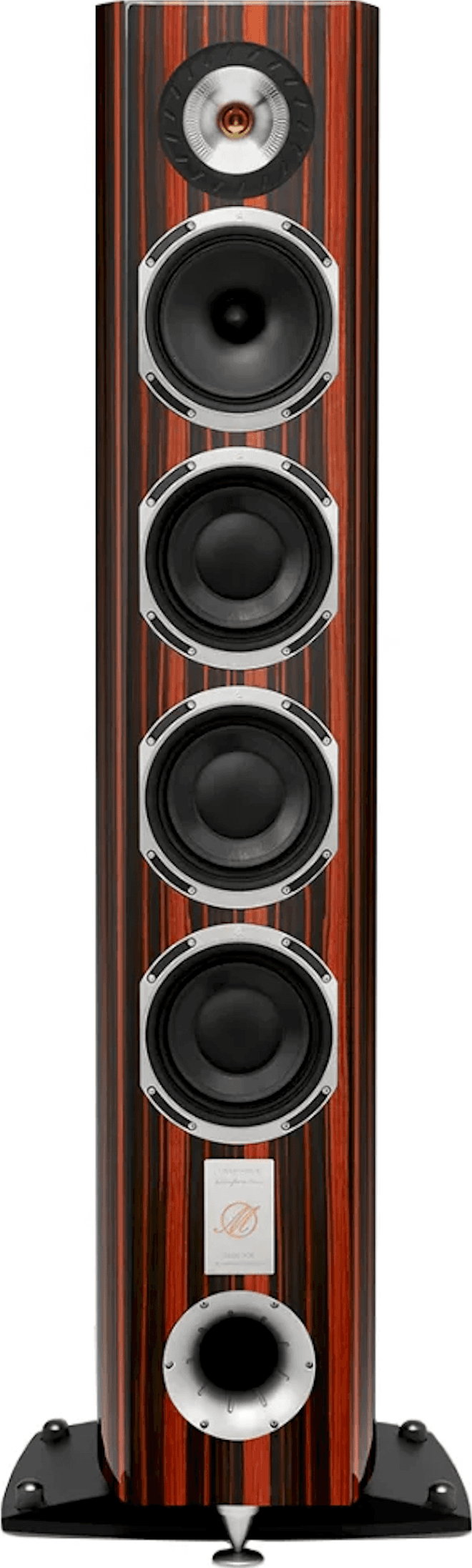

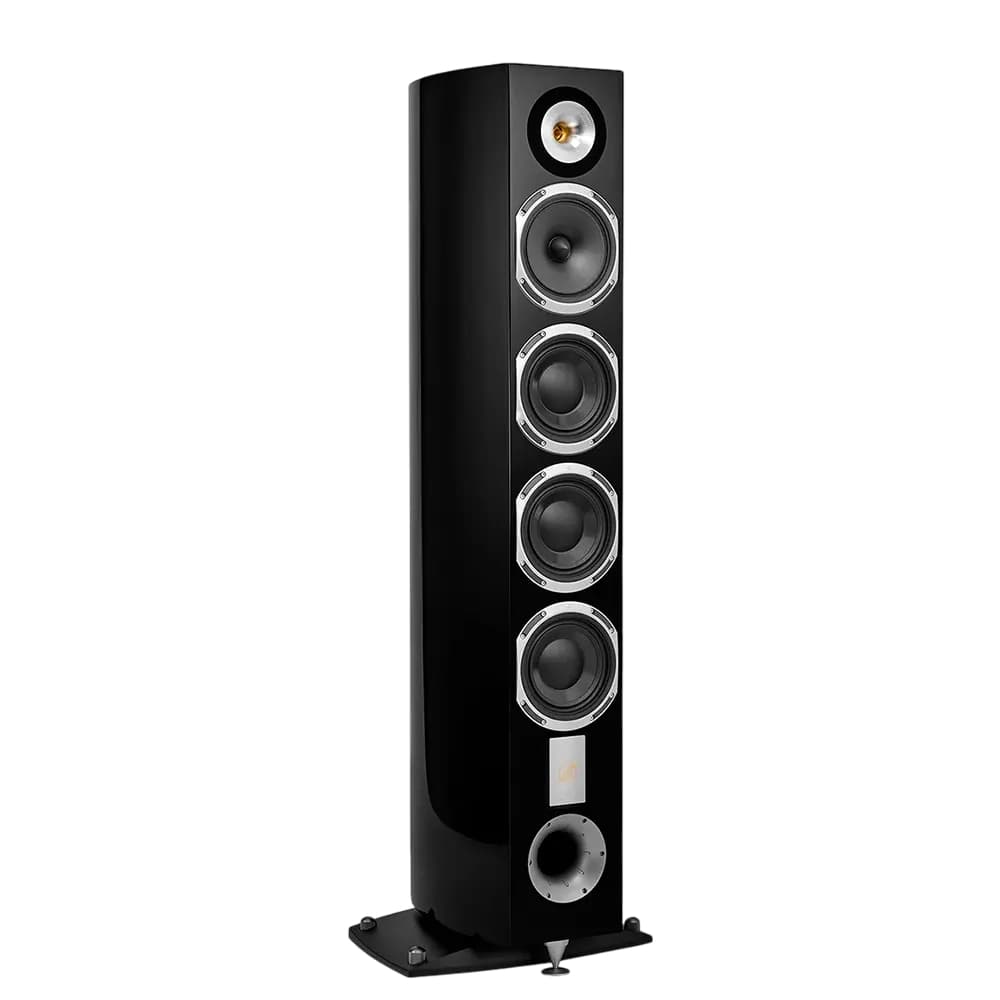

40th-Anniversary edition of the Magellan Quatuor flagship — Triangle's three-way floorstander with the SPEM rear-radiating configuration: one front-firing and one rear-firing 25 mm magnesium-dome horn-loaded compression tweeter, a 165 mm natural-paper midrange and three 165 mm fiberglass-sandwich SVA woofers in a curved multi-layer cabinet with front bass-reflex port. Reaches 33 Hz at the low end and 30 kHz at the top with 91 dB sensitivity on an 8 Ω load (3.4 Ω min), 80-500 W amp window.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #278 of 337 floorstander |
| Power | Passive |
| Height | 1280 mm |
| Width | 385 mm |
| Depth | 340 mm |
| Weight | 47 kg |
| Enclosure | bass-reflex-front |
| Drivers | 2× 25 mm tweeter (magnesium-dome compression diaphragm), 1× 165 mm midrange (natural-paper cone with fabric surround), 3× 165 mm woofer (fiberglass-sandwich SVA cone) |
| Crossover frequency | 350 / 2500 Hz |
| Frequency response | 33–30000 Hz (±3 dB) |
| Sensitivity | 91 dB |
| Impedance | 8 Ω (min 3.4 Ω) |
| Power handling | 260 W |
| Recommended amp | 80–500 W |
| MAP (USD) | $16,000 / pair |
