Wharfedale · Diamond Active · Floorstander

Diamond Active A2

Product description
The floorstander of Wharfedale's Diamond Active range — a self-powered wireless stereo pair, each tower a two-way with twin 165 mm woven-Kevlar mid/bass drivers and a 25 mm soft-dome tweeter, driven by a digital amplifier with DSP and reaching 35 Hz. RCA, coaxial and optical inputs plus aptX Bluetooth, with left and right linked losslessly over 5.8 GHz wireless at 24-bit/96 kHz — a full-size active pair, no separate amp needed.

Performance — where it sits in the catalog

BassTrebleCone area
Bass reachTreble reachCone area
Diamond Active A235 Hz20 kHz433 cm²
Median30 Hz24 kHz692 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 48 active floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Sensitivity, Easy load — the maker publishes no figure. Active speakers quote no sensitivity and no impedance, because with the amplifier inside both describe the electronics rather than the cabinet.

Units
TypeFloorstander
HiFi ladder position#47 of 648 floorstander
PowerActive
Height912 mm
Width210 mm
Depth300 mm
Footprint630 cm²
Space taken57.5 L
Weight18.8 kg
EnclosureBass reflex, rear port
Drivers1× 25 mm tweeter (soft dome), 2× 165 mm mid-bass (woven Kevlar cone)
Crossover frequency2800 Hz
Frequency response35–20000 Hz
MAP (USD)$1,299 / pair
Amplification (per driver)—
Total amp power50 W
Max SPL @ 1 m96 dB
Hi-res audio24 bit / 96 kHz
Wired inputsRCA, Coaxial S/PDIF, Optical (Toslink)
Streaming / wirelessBluetooth
Outputs—
Room correction—
Primary + secondary pair—
Wireless inter-speaker link—
Latency—
Idle power—
Max consumption—
Where to buyCheck availability ↗
Manufacturerwharfedale.co.uk ↗
Product pageOpen product page ↗

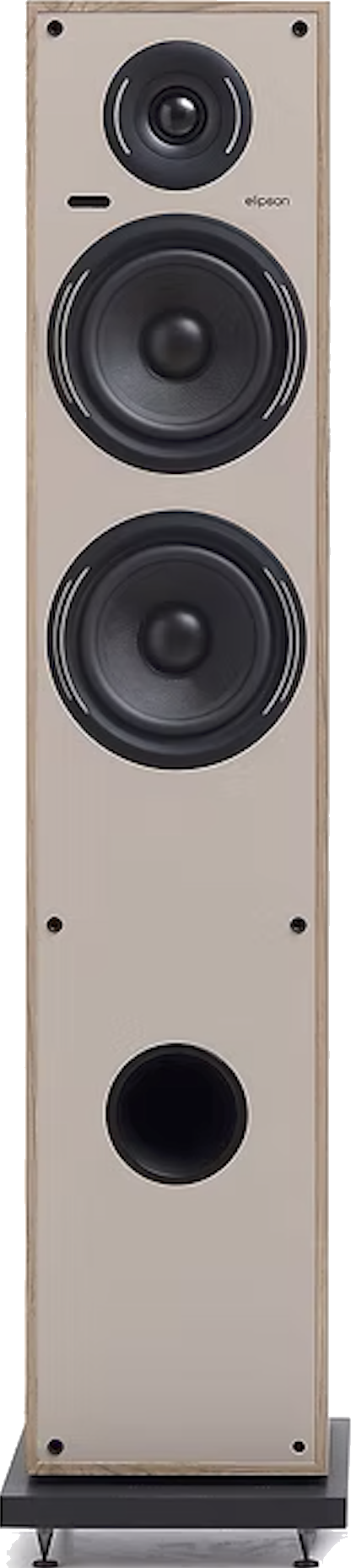

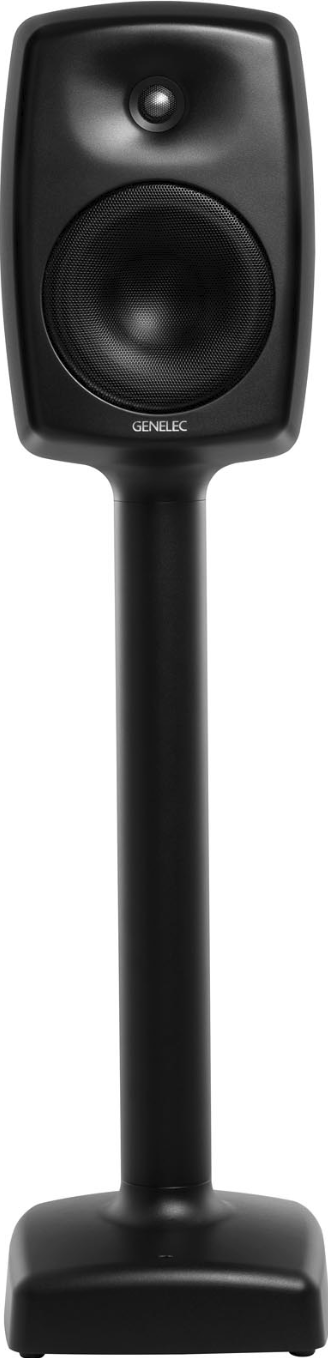

Suggested TrueScale comparisons

Tap any speaker to see it beside this one at true, real-world scale.
