Wharfedale · Heritage · Bookshelf

Dovedale 90th Anniversary

Product description

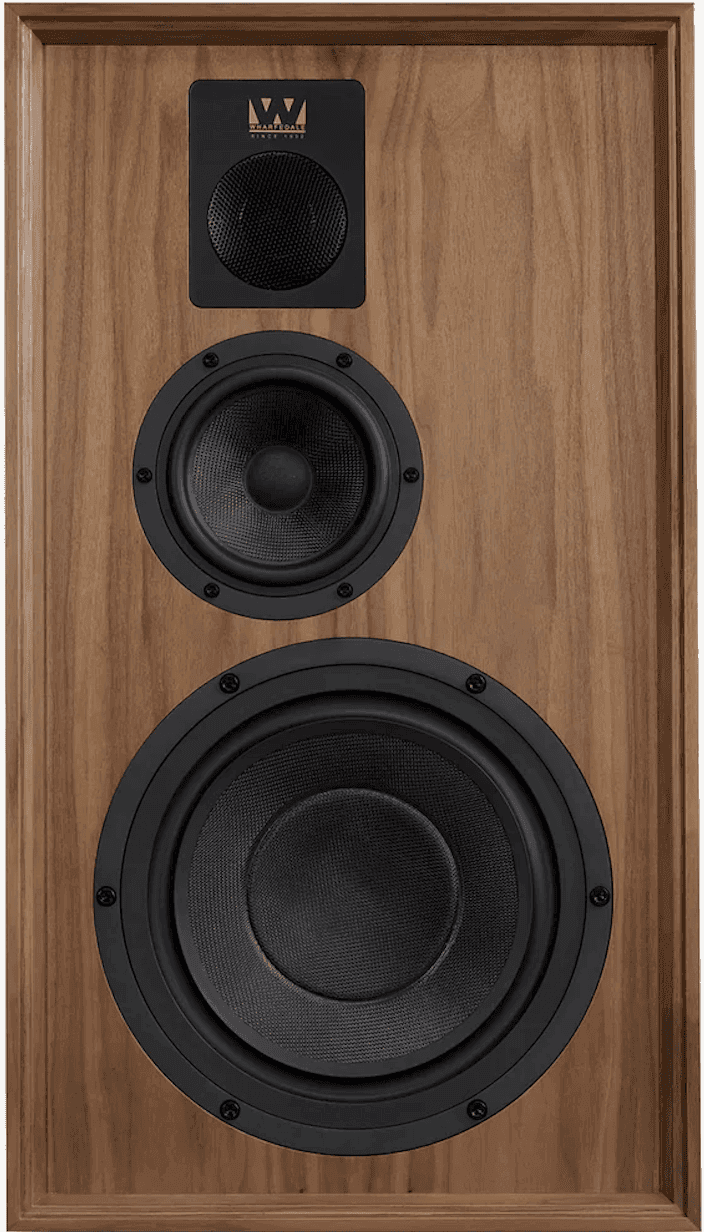

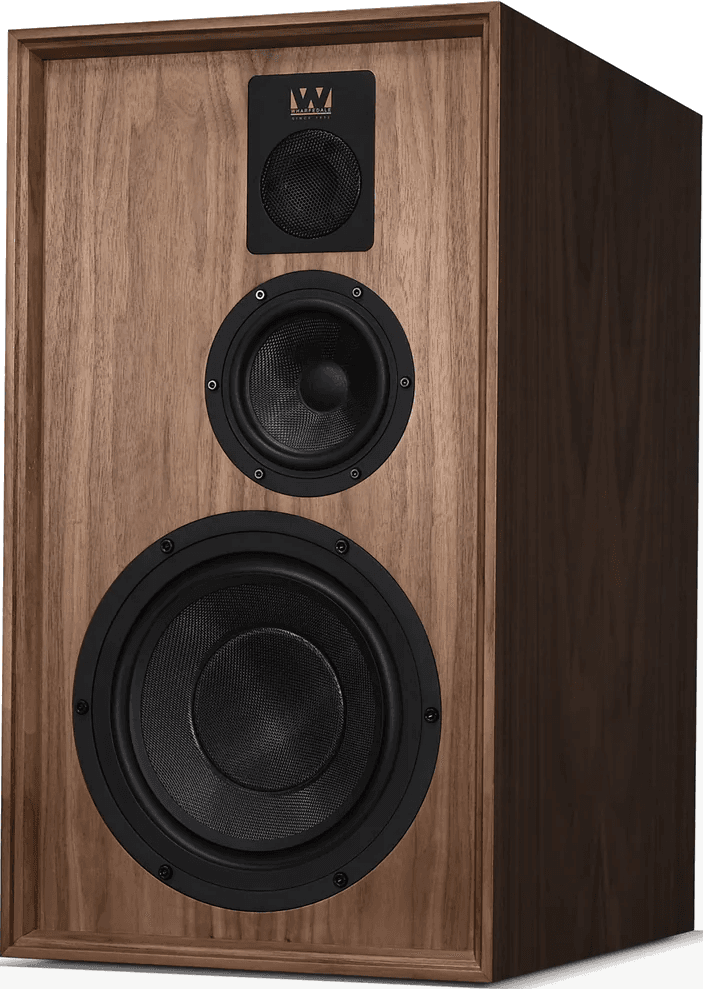

Wharfedale's 90th-anniversary three-way stand-mount — a rare modern continuation of the original Dovedale, built around a 10-inch woven-Kevlar woofer, a 5-inch Kevlar midrange and a 1-inch soft-dome tweeter. UK-built with hand-veneered walnut, it reaches 36 Hz — a large, characterful heritage monitor for a medium-to-large room, on heavy stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Dovedale36 Hz20 kHz89 dB6 Ω639 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#450 of 470 bookshelf
PowerPassive
Height660 mm
Width370 mm
Depth447 mm
Footprint1654 cm²
Space taken109.2 L
Weight26.2 kg
EnclosureBass reflex, rear port
Drivers1× 25 mm tweeter (soft dome), 1× 135 mm midrange (woven Kevlar cone), 1× 250 mm woofer (woven Kevlar cone)
Crossover frequency560 / 2900 Hz
Frequency response36–20000 Hz (±3 dB)
Sensitivity89 dB
Impedance6 Ω (min 3.6 Ω)
Recommended amp25–250 W
MAP (USD)$6,995 / pair
