Wharfedale · EVO · Bookshelf

EVO 5.2

Product description

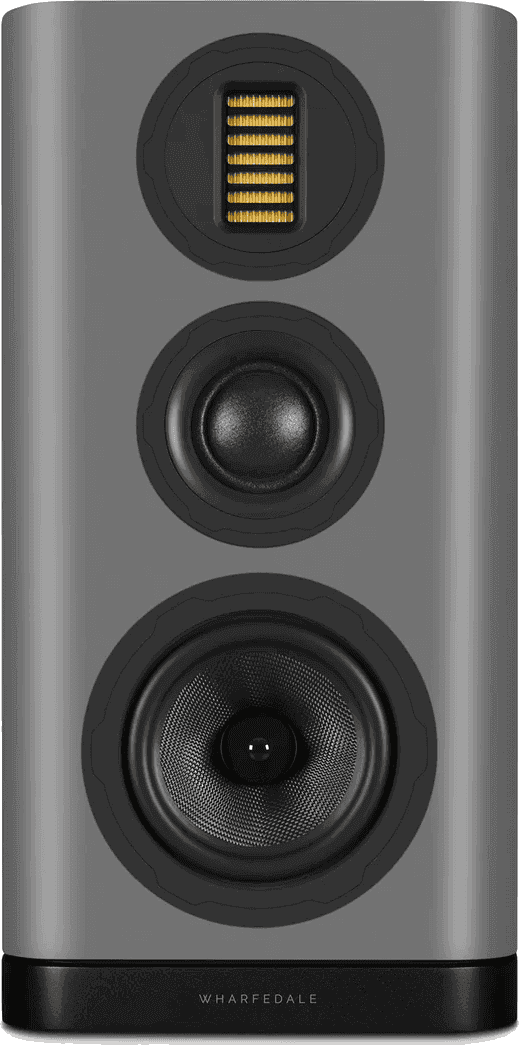

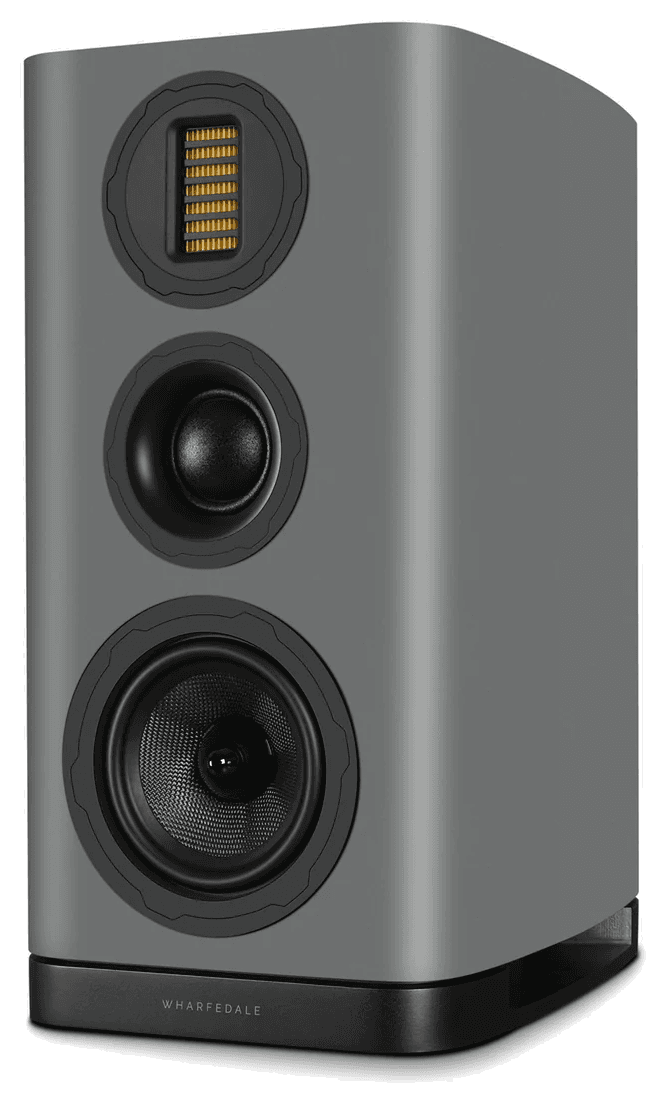

The larger EVO 5 stand-mount — a three-way that adds a 2-inch soft-dome midrange between the AMT tweeter and a 6½-inch woven-Kevlar woofer. Its bigger cabinet reaches 44 Hz, blurring the line with a small floorstander for a small-to-mid room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
EVO 5.244 Hz24 kHz88 dB4 Ω272 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#410 of 470 bookshelf
PowerPassive
Height497 mm
Width260 mm
Depth390 mm
Footprint1014 cm²
Space taken50.4 L
Weight15 kg
EnclosureBass reflex, rear port
Drivers1× 70 mm tweeter (AMT), 1× 50 mm midrange (soft dome), 1× 165 mm woofer (woven Kevlar cone)
Crossover frequency800 / 4300 Hz
Frequency response44–24000 Hz (±3 dB)
Sensitivity88 dB
Impedance4 Ω (min 3.2 Ω)
Recommended amp25–120 W
MAP (USD)$1,499 / pair
Where to buyCheck availability ↗
Manufacturerwharfedale.co.uk ↗
Product pageOpen product page ↗
