Compare speakers at true scale
Pick two speakers and see them side by side at their real-world size.
References
Front view — side by side at true scale
AGenelec 8320ABYamaha HS7
Click either cabinet to swap A ↔ B · Reference height: 332 mm (33.2 cm) · 1 mm = 1.69 px

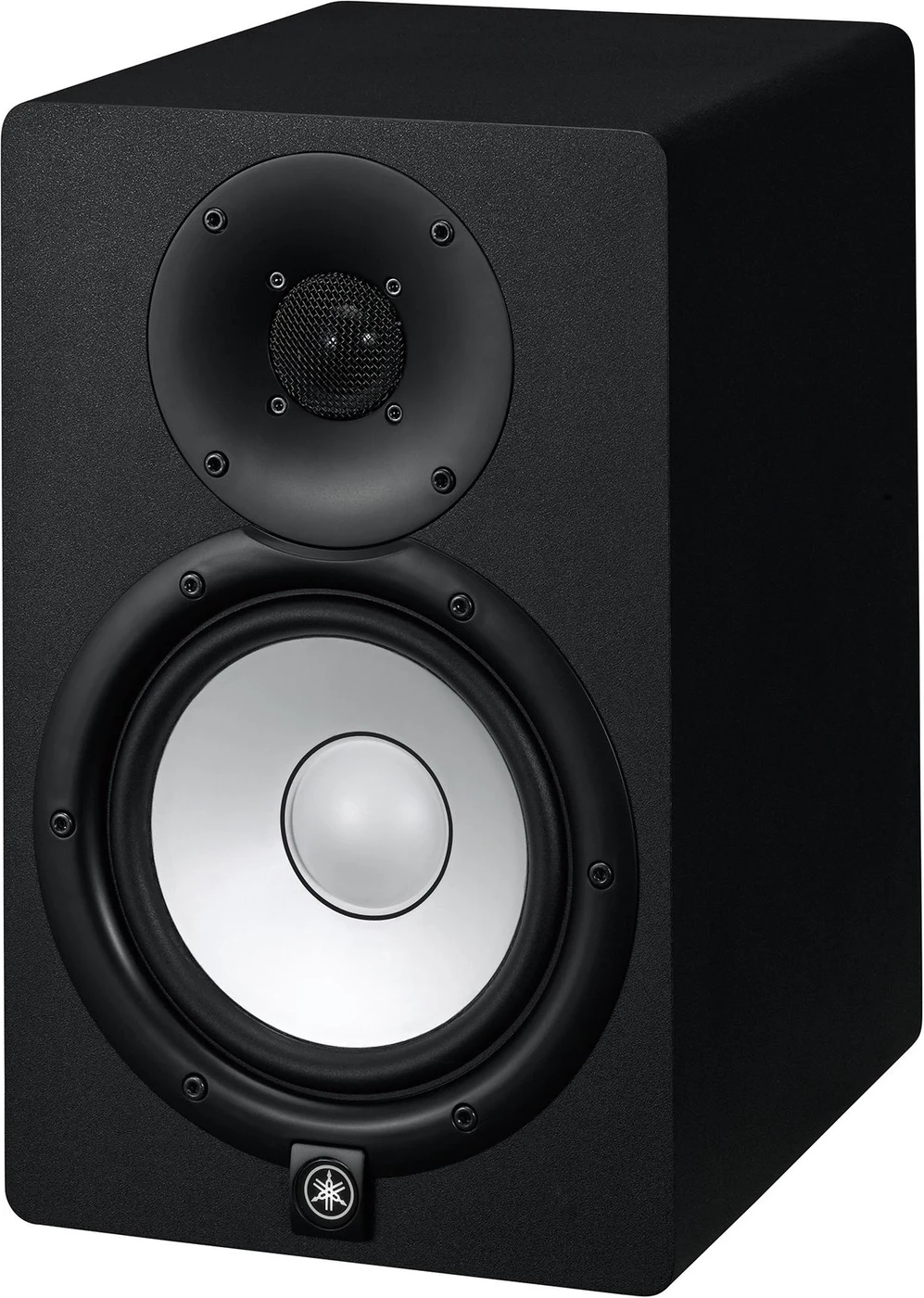

Genelec 8320AvsYamaha HS7
The Yamaha HS7 stands 33.2 cm tall — about 9.0 cm more than the Genelec 8320A at 24.2 cm. On footprint the Yamaha HS7 is the wider cabinet (21.0 cm versus 15.1 cm). The Yamaha HS7 reaches deeper in the bass, down to 43 Hz versus 55 Hz. Low frequencies come from a 105 mm cone on the Genelec 8320A and a 165 mm cone on the Yamaha HS7. On price, the Genelec 8320A sits higher — about $850 a pair against $297 for the Yamaha HS7.
| A | B | |
|---|---|---|
| Manufacturer | Genelec | Yamaha |
| Model | 8320A | HS7 |
| HiFi ladder position | #4 of 78 floorstander | #23 of 78 floorstander |
| Height | 242 mm | 332 mm |
| Width | 151 mm | 210 mm |
| Depth | 142 mm | 284 mm |
| Weight | 3.2 kg | 8.2 kg |
| Enclosure | bass-reflex-rear | bass-reflex-rear |
| Drivers | 1× 19 mm tweeter (metal dome), 1× 105 mm mid-bass (cone) | 1× 25 mm tweeter (soft dome), 1× 165 mm woofer (cone) |
| Crossover frequency | 3000 Hz | 2000 Hz |
| Frequency — low | 55 Hz | 43 Hz |
| Frequency — high | 23000 Hz | 30000 Hz |
| Sensitivity | — | — |
| Impedance | — | — |
| Recommended amp | — | — |
| MAP (USD) | $850 each | $297.49 each |
| Where to buy | Check availability ↗ | Check availability ↗ |
| Brand website | genelec.com ↗ | usa.yamaha.com ↗ |
| Product page | Open product page ↗ | Open product page ↗ |
Larger value highlighted in green. For low-frequency extension, lower Hz = greater bass reach, so the deeper side is highlighted.
