Canton · Reference · Floorstander

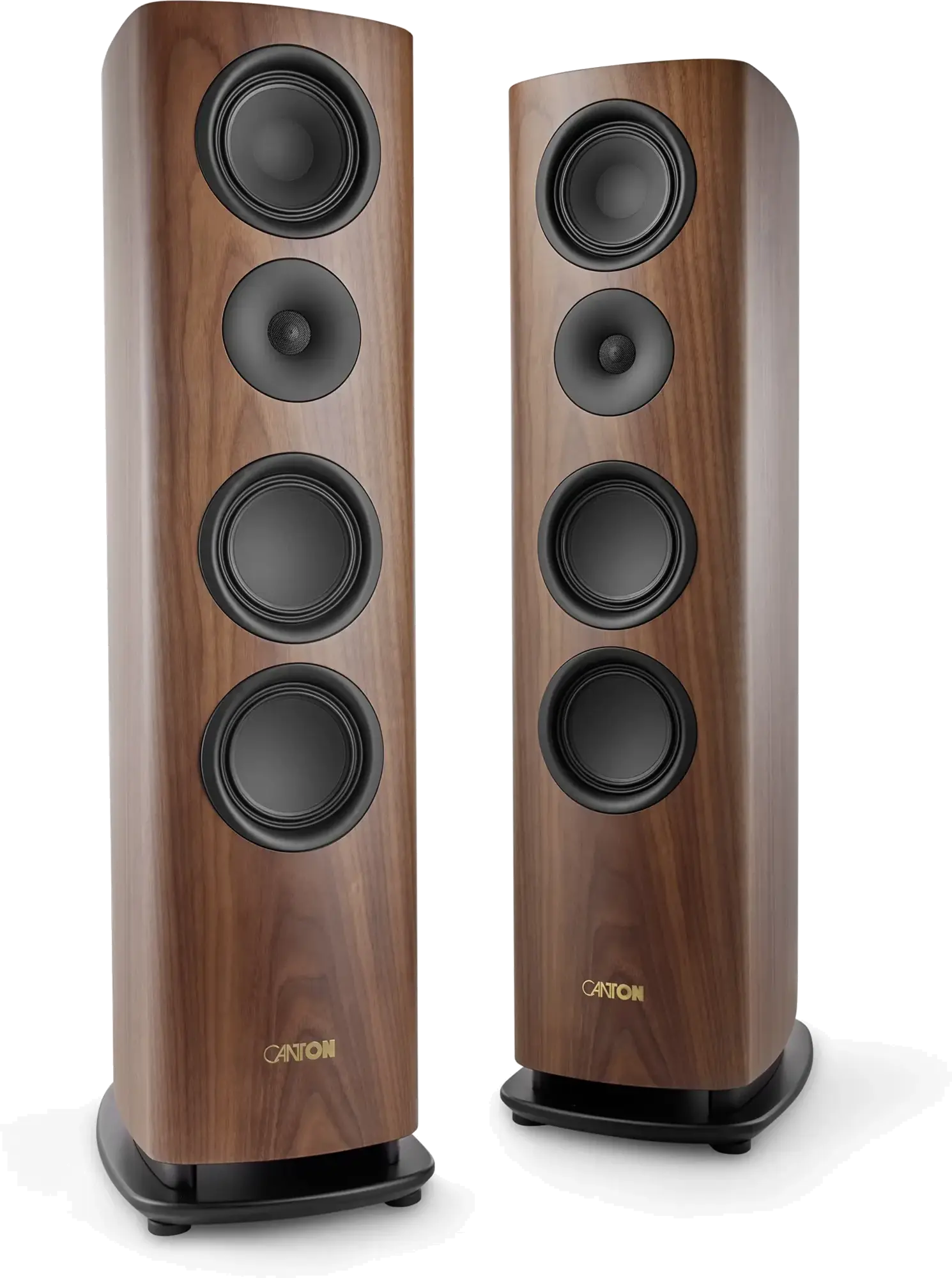

Reference 7

Product description

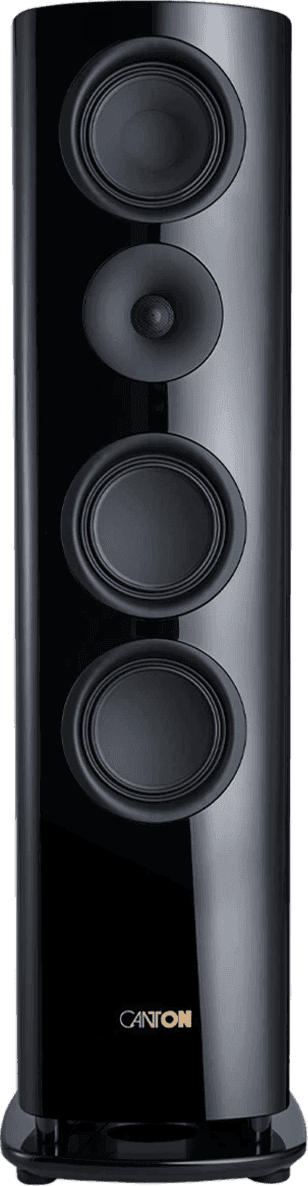

The entry-level Reference tower — the 25 mm ceramic tweeter with a 154 mm BCT midrange and twin 154 mm BCT woofers, down-firing ported. Its smaller drivers bring Reference-grade cones and ceramic treble to a slim tower for a small-to-medium room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Reference 723 Hz40 kHz87.5 dB4 Ω564 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#126 of 648 floorstander
PowerPassive
Height990 mm
Width257 mm
Depth430 mm
Footprint1105 cm²
Space taken109.4 L
Weight33 kg
EnclosureBass reflex, down-firing port
Drivers1× 25 mm tweeter (aluminium-oxide ceramic dome), 1× 154 mm midrange (Black Ceramic Tungsten cone), 2× 154 mm woofer (Black Ceramic Tungsten cone)
Crossover frequency190 / 3200 Hz
Frequency response23–40000 Hz (±3 dB)
Sensitivity87.5 dB
Impedance4 Ω (min 4 Ω)
Power handling160 W
MAP (USD)$8,500 / pair
Where to buyCheck availability ↗
Manufacturercanton.de ↗
Product pageOpen product page ↗
