Reference 9

Product description

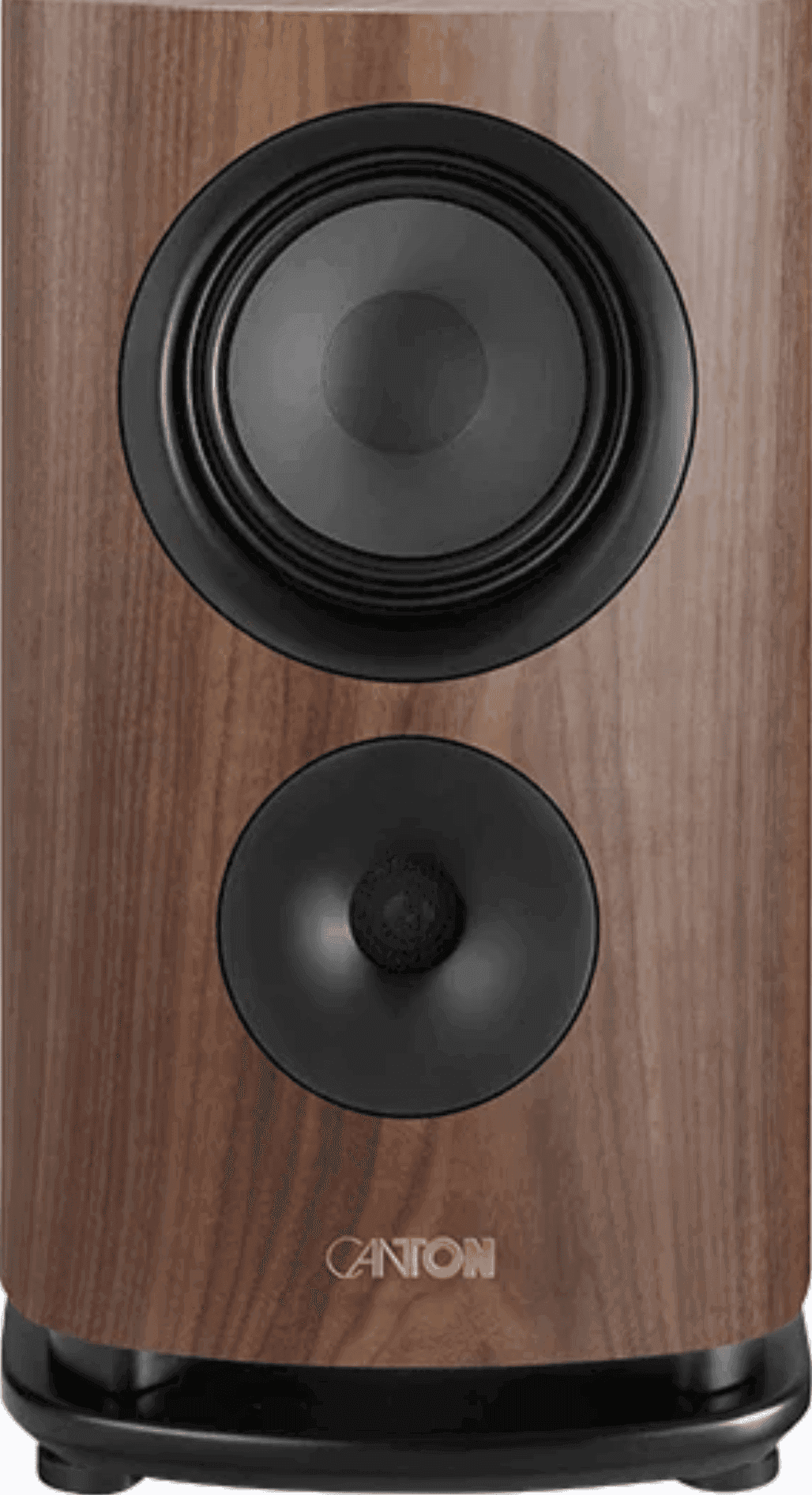

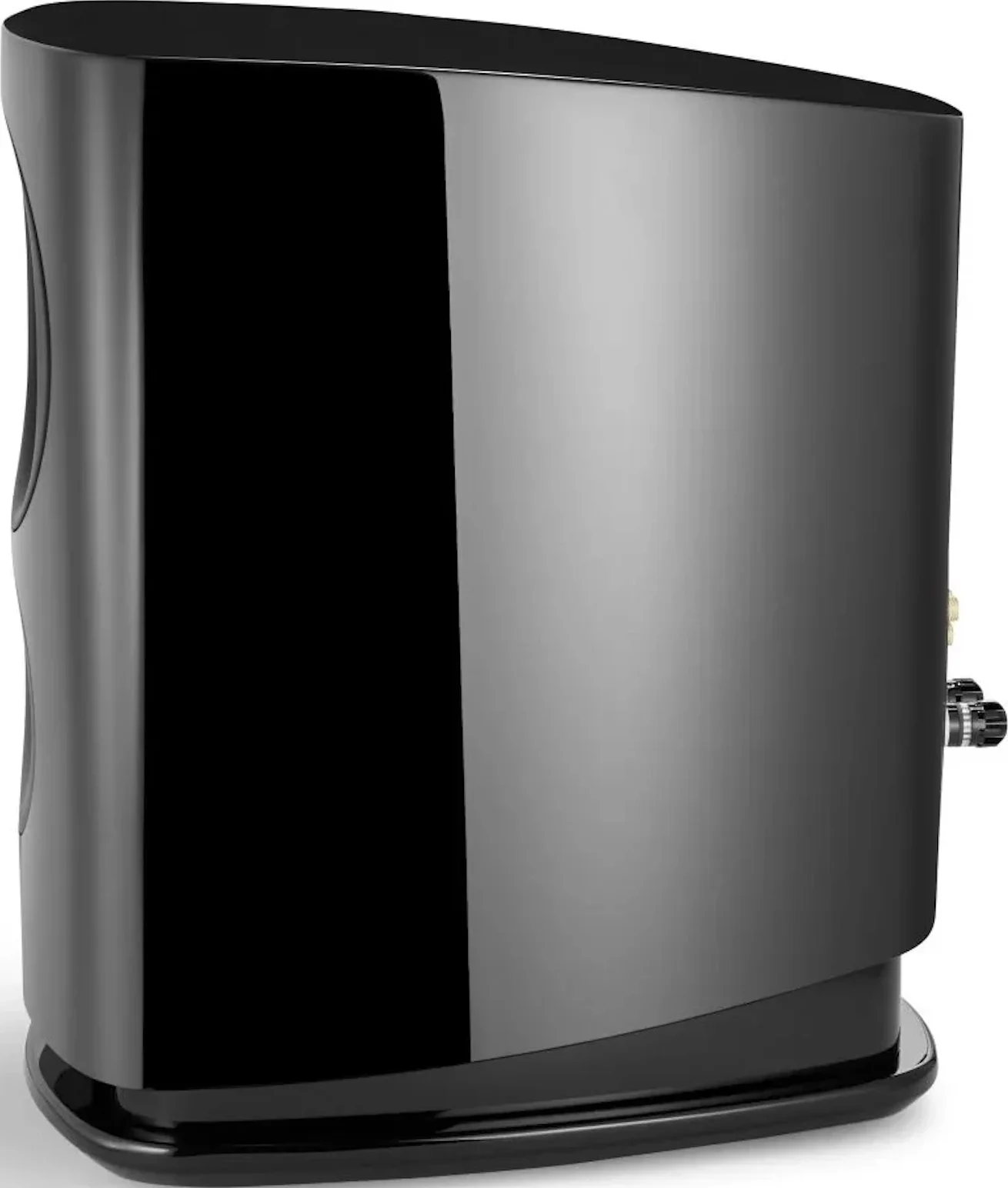

The standmount of the Reference line — a two-way pairing the 25 mm ceramic tweeter with a 174 mm BCT mid-bass in a down-firing ported cabinet, with WBT connectors and an adjustable treble control. The way into Reference-grade drivers for a small-to-medium room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Reference 925 Hz40 kHz87 dB4 Ω243 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#385 of 470 bookshelf
PowerPassive
Height460 mm
Width244 mm
Depth390 mm
Footprint952 cm²
Space taken43.8 L
Weight18 kg
EnclosureBass reflex, down-firing port
Drivers1× 25 mm tweeter (aluminium-oxide ceramic dome), 1× 174 mm mid-bass (Black Ceramic Tungsten cone)
Frequency response25–40000 Hz (±3 dB)
Sensitivity87 dB
Impedance4 Ω (min 4 Ω)
Power handling125 W
MAP (USD)$5,800 / pair
Where to buyCheck availability ↗
Manufacturercanton.de ↗
Product pageOpen product page ↗
