Canton · Reference Alpha · Floorstander

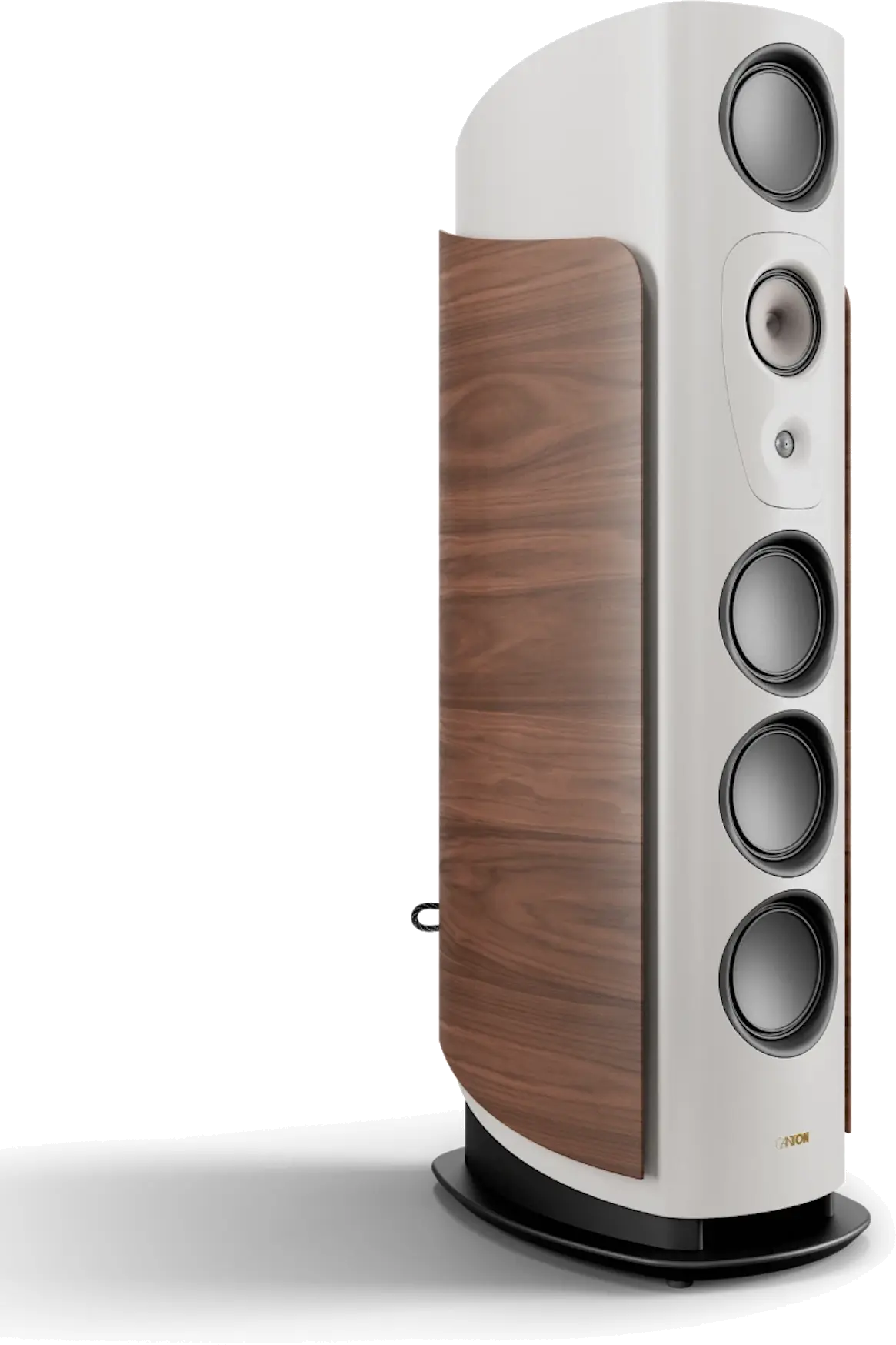

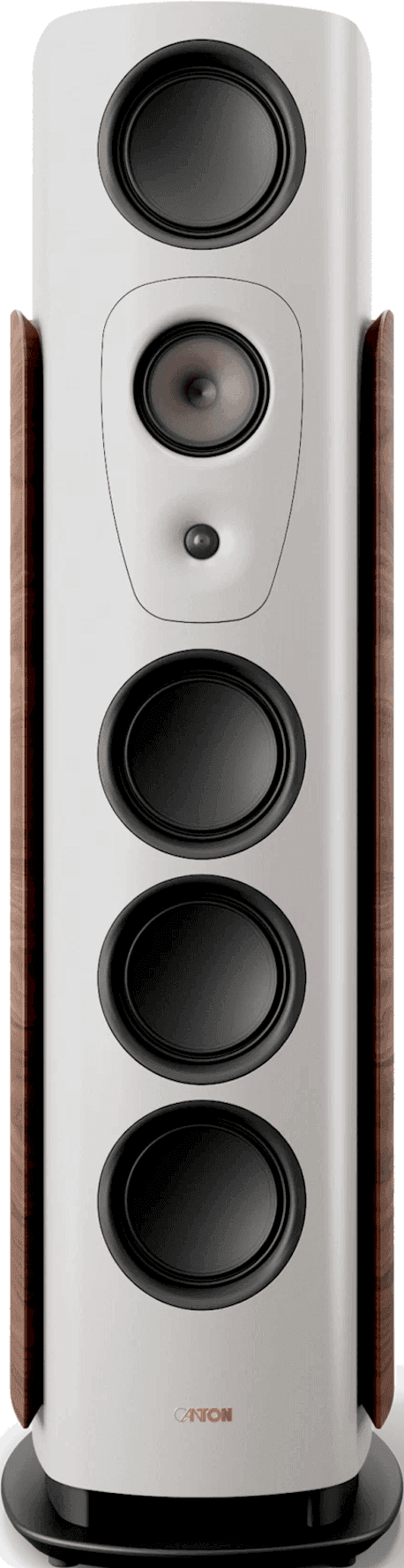

Reference Alpha 1

Product description
The flagship of Canton's Reference Alpha line and its most ambitious speaker — a three-way with a 25 mm DLC diamond-coated tweeter, a 174 mm BCT midrange and four 219 mm double-cone BCT woofers in a curved cabinet with Mundorf crossovers. A cost-no-object statement for a large dedicated room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Reference Alpha 118 Hz40 kHz89 dB4 Ω1749 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#609 of 648 floorstander
PowerPassive
Height1640 mm
Width422 mm
Depth720 mm
Footprint3038 cm²
Space taken498.3 L
Weight145 kg
EnclosureBass reflex, down-firing port
Drivers1× 25 mm tweeter (DLC diamond-coated dome), 1× 174 mm midrange (Black Ceramic Tungsten cone), 4× 219 mm woofer (Black Ceramic Tungsten cone)
Crossover frequency160 / 3100 Hz
Frequency response18–40000 Hz (±3 dB)
Sensitivity89 dB
Impedance4 Ω (min 4 Ω)
Power handling500 W
MAP (USD)$70,000 / pair
