Dynaudio · Evoke · Bookshelf

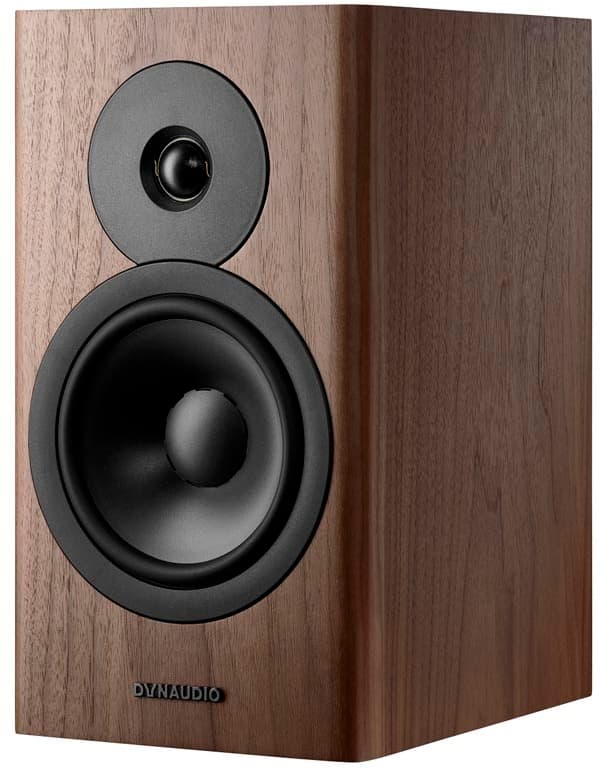

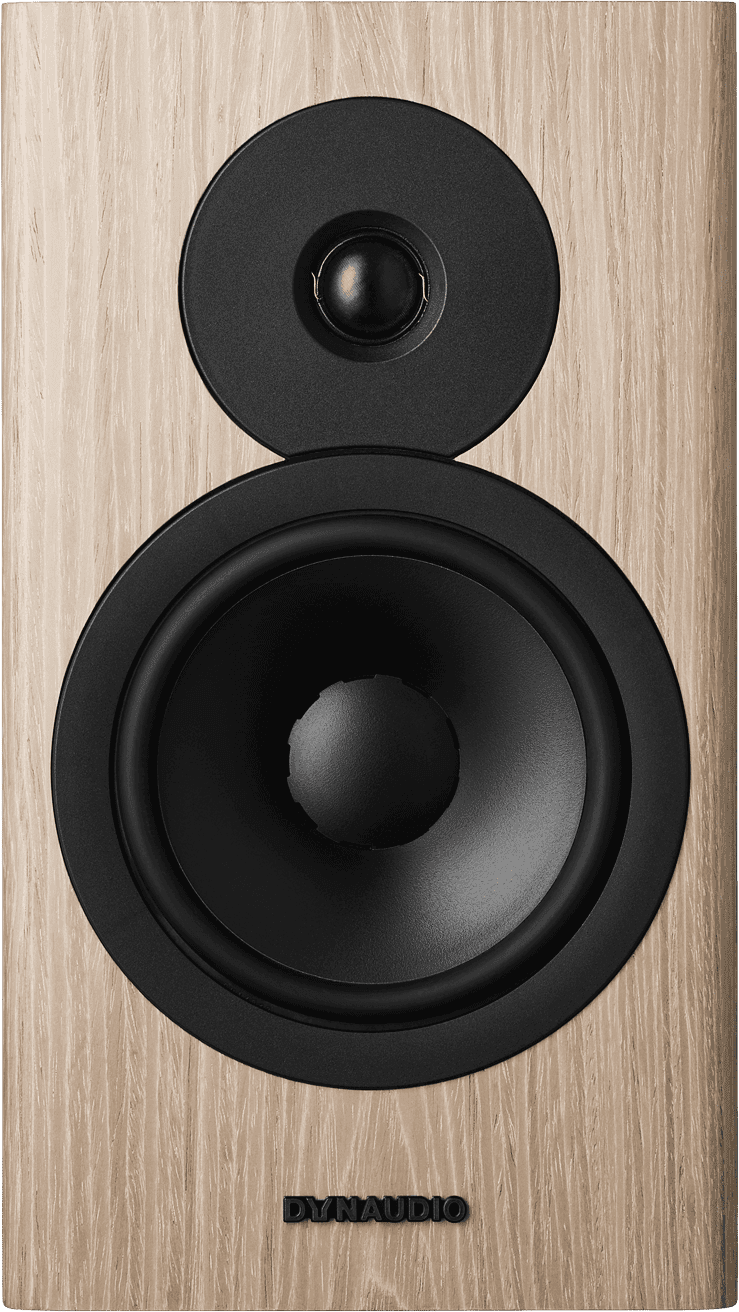

Evoke 20

Product description
A larger Evoke stand-mount with an 18 cm MSP mid-bass that extends response to 40 Hz while staying a comfortable load, keeping the same 28 mm Cerotar tweeter. The fuller-bodied bookshelf of the line for a small-to-mid room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Evoke 2040 Hz23 kHz86 dB6 Ω261 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#276 of 470 bookshelf
PowerPassive
Height380 mm
Width215 mm
Depth317 mm
Footprint682 cm²
Space taken25.9 L
Weight9.9 kg
EnclosureBass reflex, rear port
Drivers1× 28 mm tweeter (Cerotar soft dome with Hexis), 1× 180 mm mid-bass (MSP cone)
Crossover frequency3200 Hz
Frequency response40–23000 Hz (±3 dB)
Sensitivity86 dB
Impedance6 Ω
Power handling180 W
MAP (USD)$2,399 / pair
Where to buyCheck availability ↗
Manufacturerdynaudio.com ↗
Product pageOpen product page ↗
