ELAC · Concentro · Floorstander

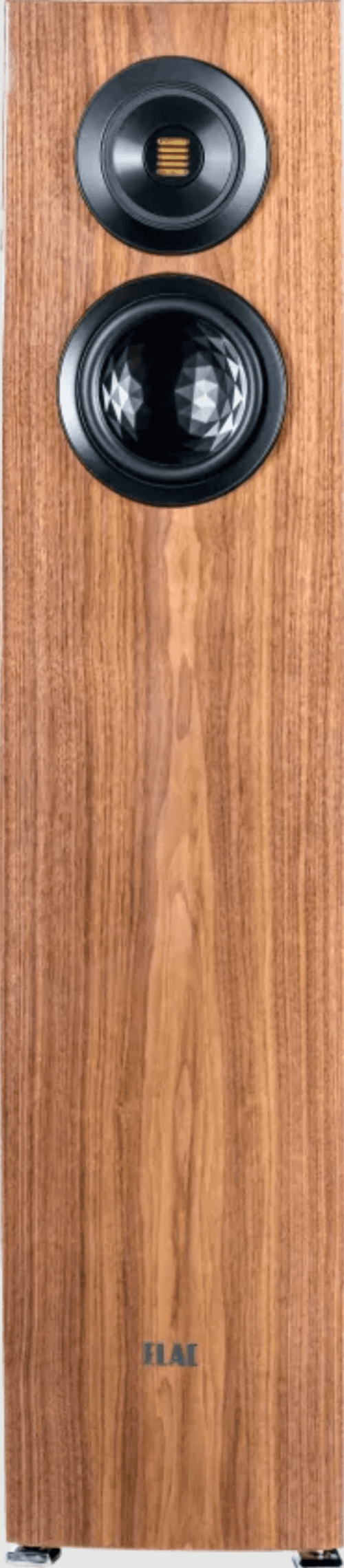

Concentro S 507.22.0
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Mid-flagship four-way floorstander in ELAC's Concentro 2.0 line — the JET 6 concentric tweeter sits at the centre of a 130 mm aluminium high-midrange driver, joined by a separate 180 mm AS-XR low-midrange and four side-firing 150 mm aluminium AS woofers handling bass below 120 Hz. 24 Hz at 88 dB on a 4 Ω load (3.0 Ω min), 60-500 W amp window.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #259 of 337 floorstander |
| Power | Passive |
| Height | 1220 mm |
| Width | 268 mm |
| Depth | 380 mm |
| Weight | 37 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (JET 6 pleated-folded ribbon), 1× 130 mm midrange (aluminium cone), 1× 180 mm midrange (aluminium AS-XR cone), 4× 150 mm woofer (aluminium AS cone) |
| Crossover frequency | 120 / 400 / 2600 Hz |
| Frequency response | 24–50000 Hz |
| Sensitivity | 88 dB |
| Impedance | 4 Ω (min 3 Ω) |
| Power handling | 300 W |
| Recommended amp | 60–500 W |
| MAP (USD) | $15,398 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | elac.com ↗ |
| Product page | Open product page ↗ |
