ELAC · Debut Reference · Bookshelf

Debut Reference DBR62

Product description

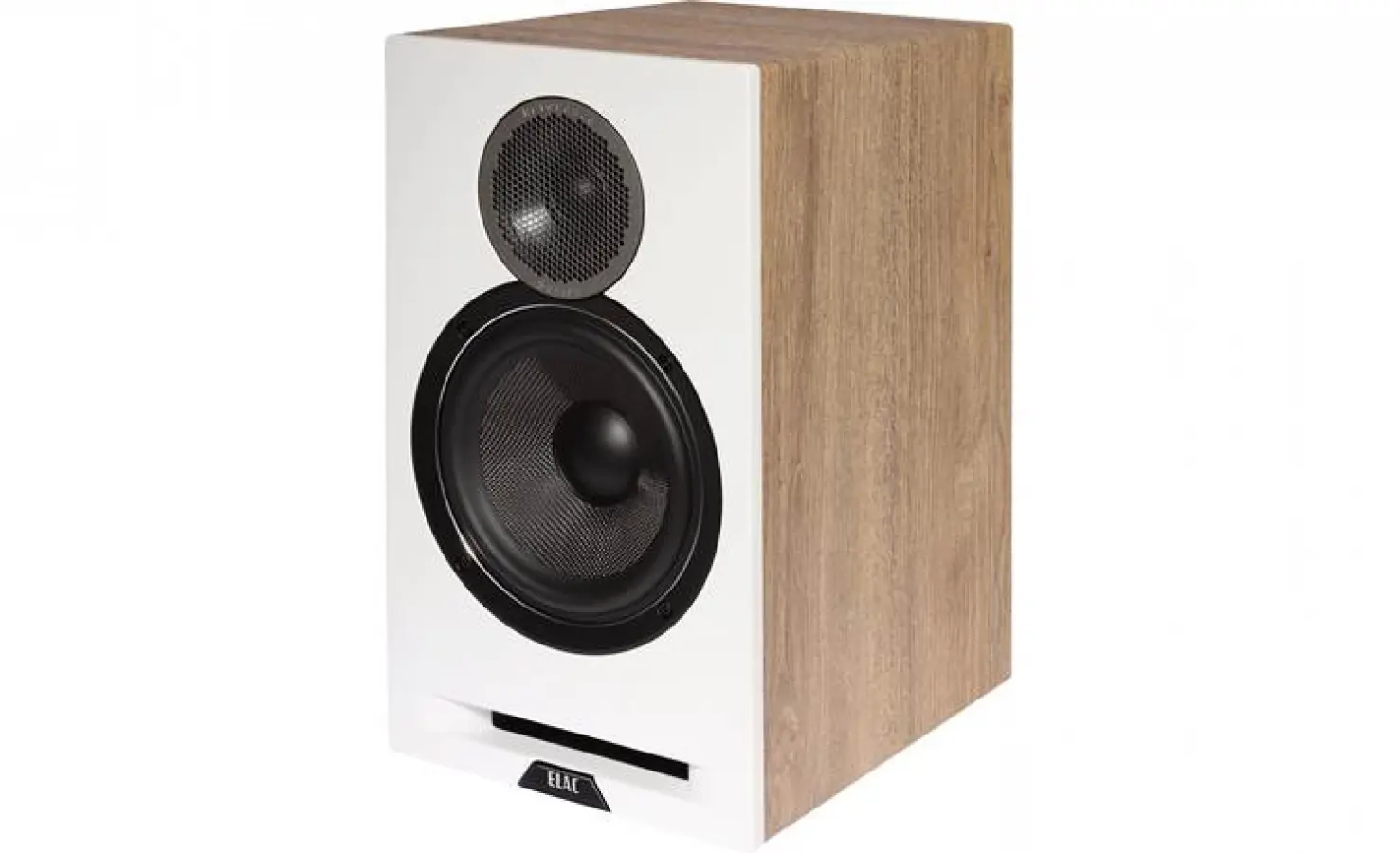

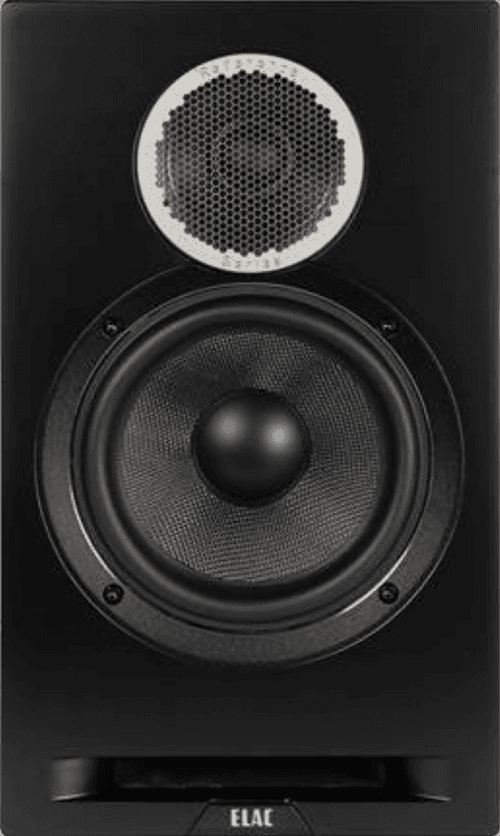

A step-up two-way bookshelf in ELAC's Debut Reference line — a 25 mm soft-dome tweeter and an oversized 165 mm aramid-fibre woofer in a front-ported cabinet with dual flared ports. The oversized woofer and front porting give budget-price bass with real body, and make it easy to place near a wall.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Debut Reference DBR6244 Hz35 kHz86 dB6 Ω219 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 452 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 380 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#218 of 452 bookshelf
PowerPassive
Height359 mm
Width215 mm
Depth275 mm
Footprint591 cm²
Space taken21.2 L
Weight8.2 kg
EnclosureBass reflex, front port
Drivers1× 25 mm tweeter (soft dome), 1× 165 mm mid-bass (aramid-fibre cone)
Crossover frequency2200 Hz
Frequency response44–35000 Hz (±6 dB)
Sensitivity86 dB
Impedance6 Ω
Power handling120 W
MAP (USD)$799 / pair
Where to buyCheck availability ↗
Manufacturerelac.com ↗
Product pageOpen product page ↗
