ELAC · Concentro · Floorstander
Concentro M8072.0
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

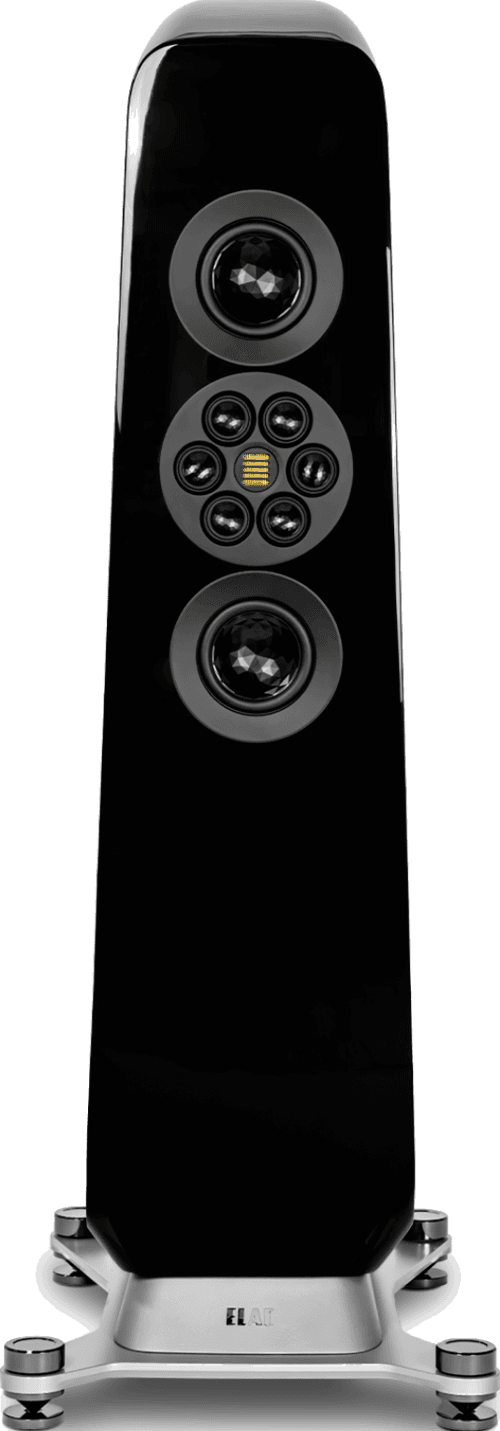

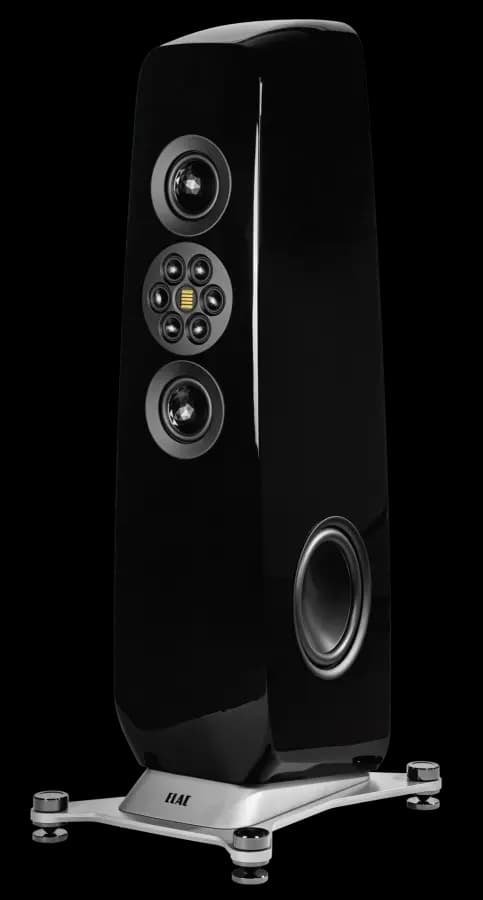

ELAC's flagship Concentro M807 — a four-way statement floorstander built around the JET 6c concentric tweeter ringed by a VXe array of six 40 mm aluminium high-mids that allow 25 selectable directivity settings, plus a pair of 115 mm low-mids and two side-firing 250 mm aluminium woofers. Reaches 24 Hz at 88 dB sensitivity, 4 Ω nominal (3.1 Ω min), 80-600 W amp window.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #299 of 337 floorstander |
| Power | Passive |
| Height | 1340 mm |
| Width | 468 mm |
| Depth | 595 mm |
| Weight | 62 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (JET 6c pleated-folded ribbon), 6× 40 mm midrange (aluminium A-XR cone), 2× 115 mm midrange (aluminium AS-XR cone), 2× 250 mm woofer (aluminium AS cone) |
| Crossover frequency | 150 / 650 / 2650 Hz |
| Frequency response | 24–50000 Hz |
| Sensitivity | 88 dB |
| Impedance | 4 Ω (min 3.1 Ω) |
| Power handling | 400 W |
| Recommended amp | 80–600 W |
| MAP (USD) | $45,000 / pair |
