Product description

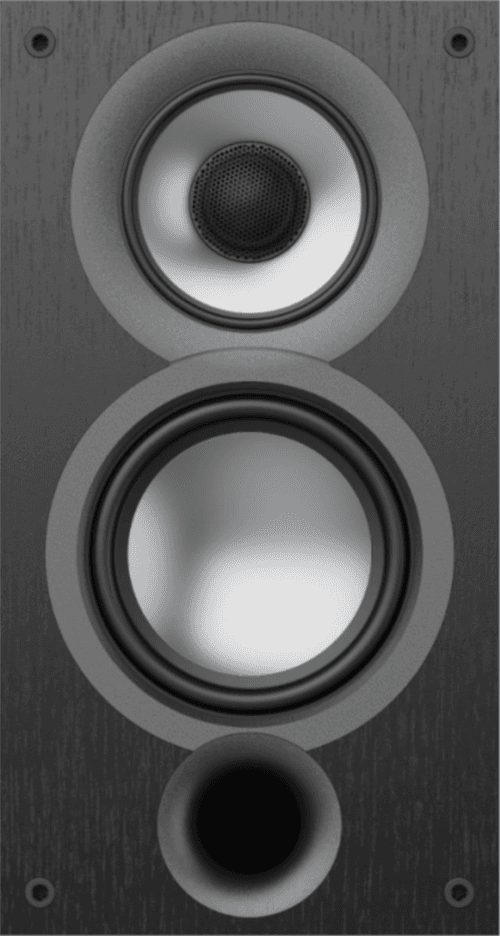

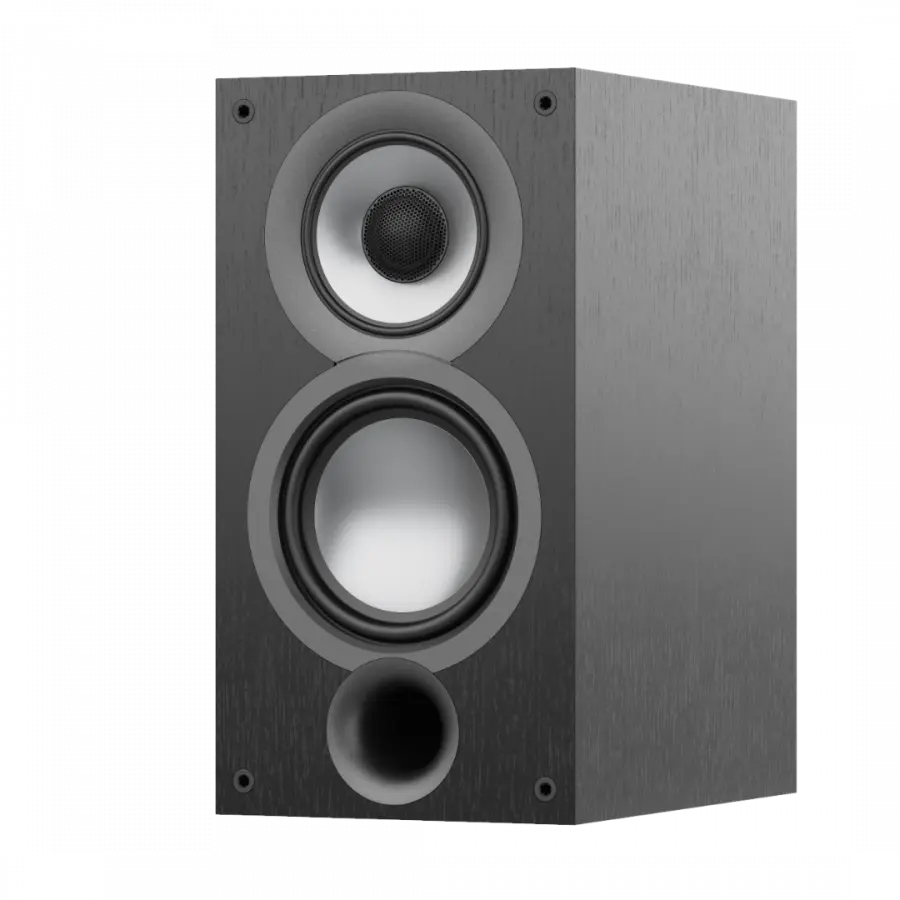

Three-way bookshelf in ELAC's UniFi 2.0 line built around a concentric driver — a 25 mm soft-dome tweeter sits in the centre of a 102 mm aluminium midrange cone, paired with a separate 133 mm aluminium woofer in a front-ported cabinet. Reaches 46 Hz at -6 dB with 85 dB sensitivity on 6 Ω.
Units
| Type | Bookshelf |
|---|---|
| Power | Passive |
| Height | 346 mm |
| Width | 185 mm |
| Depth | 275 mm |
| Weight | 8.5 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 102 mm midrange (aluminium cone), 1× 133 mm woofer (aluminium cone) |
| Frequency response | 46–35000 Hz (±6 dB) |
| Sensitivity | 85 dB |
| Impedance | 6 Ω |
| Power handling | 140 W |
| MAP (USD) | $799 / pair |
| Manufacturer | elac.com ↗ |
| Product page | Open product page ↗ |
