ELAC · UniFi Reference · Bookshelf

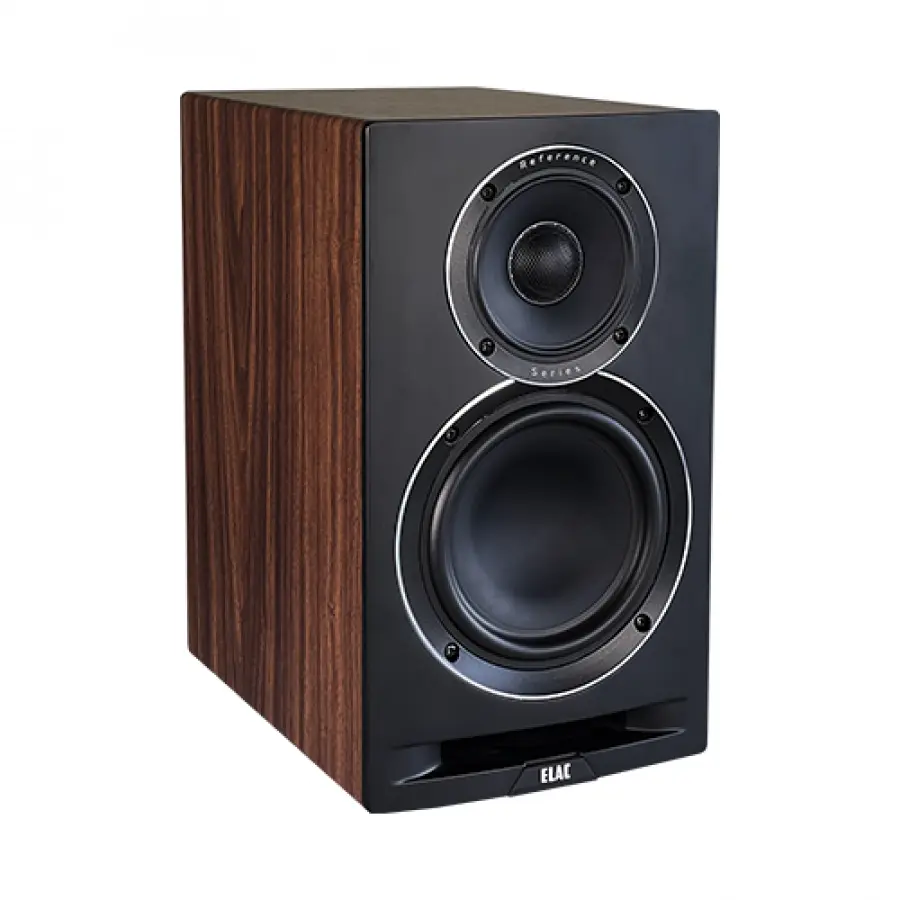

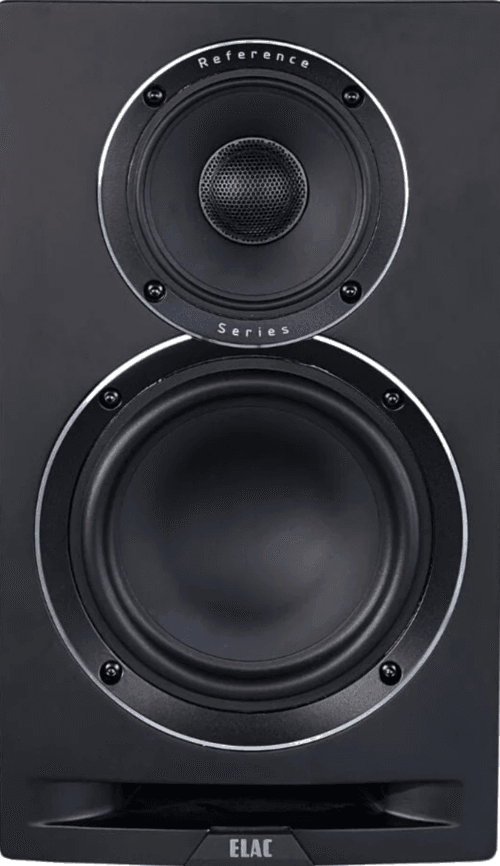

UniFi Reference UBR62
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Reference-tier three-way bookshelf in ELAC's UniFi Reference line — concentric 25 mm soft-dome tweeter inside a 102 mm aluminium midrange cone, paired with a 165 mm aluminium woofer in a front-ported cabinet with dual flared slot ports. Reaches 41 Hz at -6 dB with 85 dB sensitivity on 6 Ω.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #123 of 255 bookshelf |
| Power | Passive |
| Height | 359 mm |
| Width | 207 mm |
| Depth | 334 mm |
| Weight | 10.68 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 102 mm midrange (aluminium cone), 1× 165 mm woofer (aluminium cone) |
| Crossover frequency | 260 / 1800 Hz |
| Frequency response | 41–35000 Hz (±6 dB) |
| Sensitivity | 85 dB |
| Impedance | 6 Ω |
| Power handling | 140 W |
| MAP (USD) | $1,299 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | elac.com ↗ |
| Product page | Open product page ↗ |
