ELAC · Vela · Bookshelf

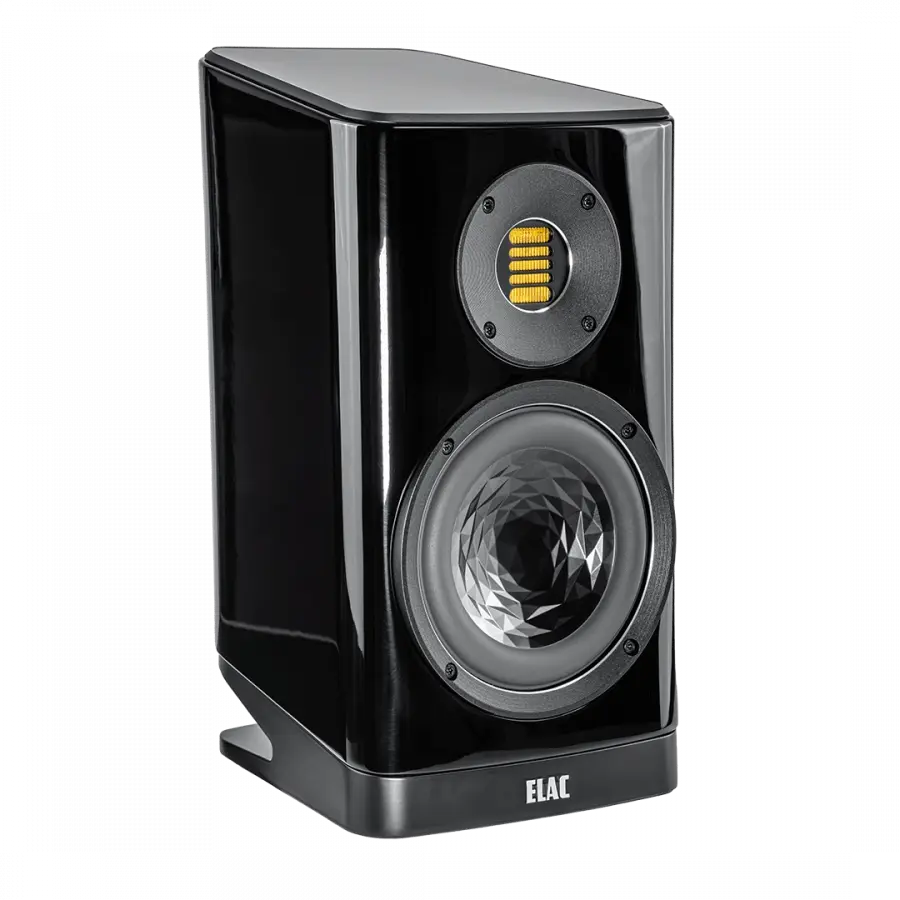

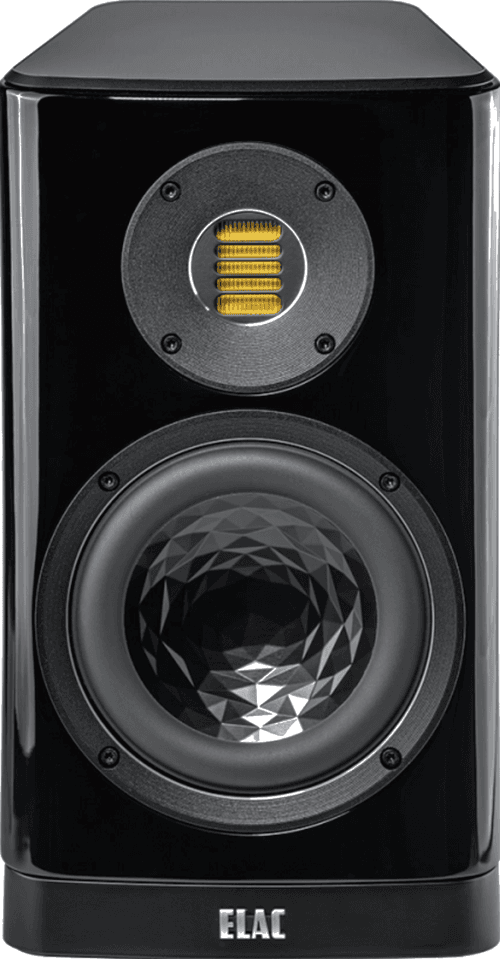

Vela VBS403.22.0
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Compact two-way bookshelf in ELAC's Vela 2.0 line — a JET 6 pleated-folded ribbon tweeter sits above a 150 mm aluminium AS-XR woofer in a trapezoidal bass-reflex cabinet. Reaches 41 Hz at the low end and 50 kHz on top with 86 dB sensitivity on 4 Ω (3.2 Ω min), 40-200 W amp window.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #130 of 255 bookshelf |
| Power | Passive |
| Height | 362 mm |
| Width | 189 mm |
| Depth | 240 mm |
| Weight | 7.1 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (JET 6 pleated-folded ribbon), 1× 150 mm mid-bass (aluminium AS-XR cone) |
| Crossover frequency | 2400 Hz |
| Frequency response | 41–50000 Hz |
| Sensitivity | 86 dB |
| Impedance | 4 Ω (min 3.2 Ω) |
| Power handling | 100 W |
| Recommended amp | 40–200 W |
| MAP (USD) | $3,299 / pair |
