ELAC · Vela · Bookshelf

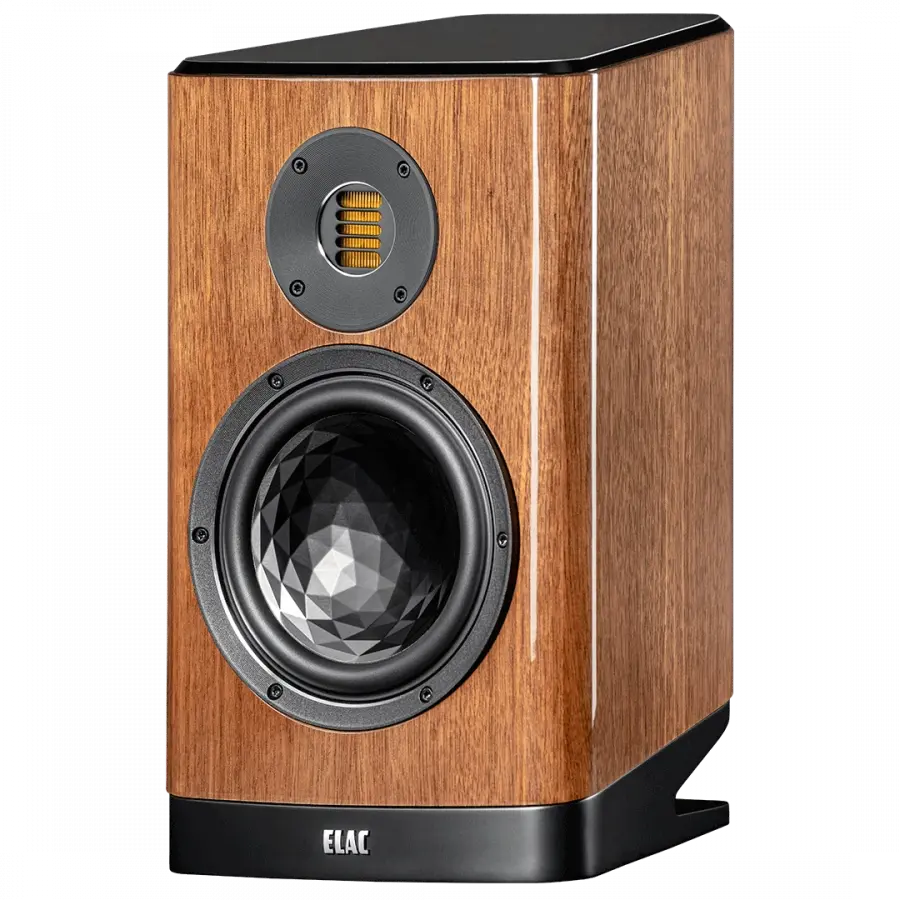

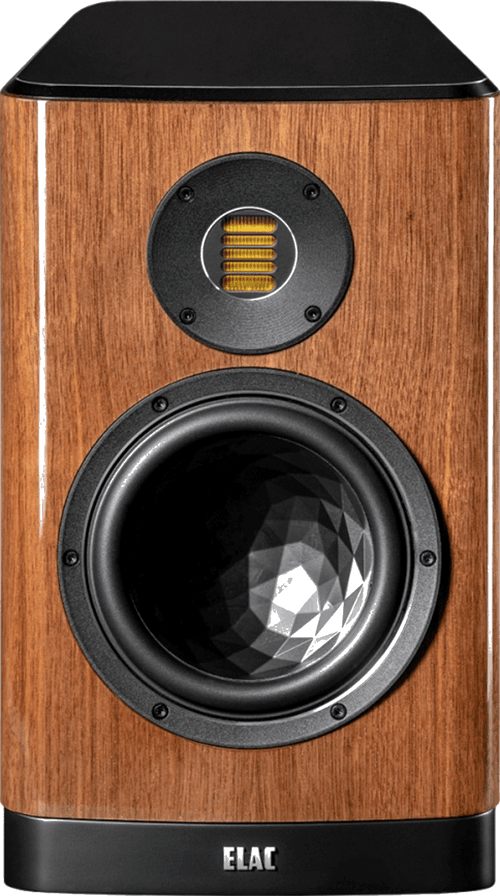

Vela VBS404.22.0
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Larger two-way bookshelf in ELAC's Vela 2.0 line — same JET 6 pleated-folded ribbon tweeter as the VBS403.2, here driven by a 180 mm aluminium AS-XR woofer instead of the smaller 150 mm unit. Reaches 38 Hz with 87 dB sensitivity on 4 Ω (3.2 Ω min); the trapezoidal cabinet's sculpted sides make the apparent front-face width narrower than the spec-sheet's max-cabinet width.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #179 of 255 bookshelf |
| Power | Passive |
| Height | 412 mm |
| Width | 230 mm |
| Depth | 332 mm |
| Weight | 9.7 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (JET 6 pleated-folded ribbon), 1× 180 mm mid-bass (aluminium AS-XR cone) |
| Crossover frequency | 2400 Hz |
| Frequency response | 38–50000 Hz |
| Sensitivity | 87 dB |
| Impedance | 4 Ω (min 3.2 Ω) |
| Power handling | 120 W |
| Recommended amp | 40–200 W |
| MAP (USD) | $3,699 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | elac.com ↗ |
| Product page | Open product page ↗ |
