Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | Cone area | |
|---|---|---|---|---|---|
| Aria Evo X N°1 | 55 Hz | 30 kHz | 89.5 dB | 8 Ω | 219 cm² |
| Median | 45 Hz | 25 kHz | 87 dB | 6 Ω | 219 cm² |
How to read this chart
Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Focal · Aria · Bookshelf

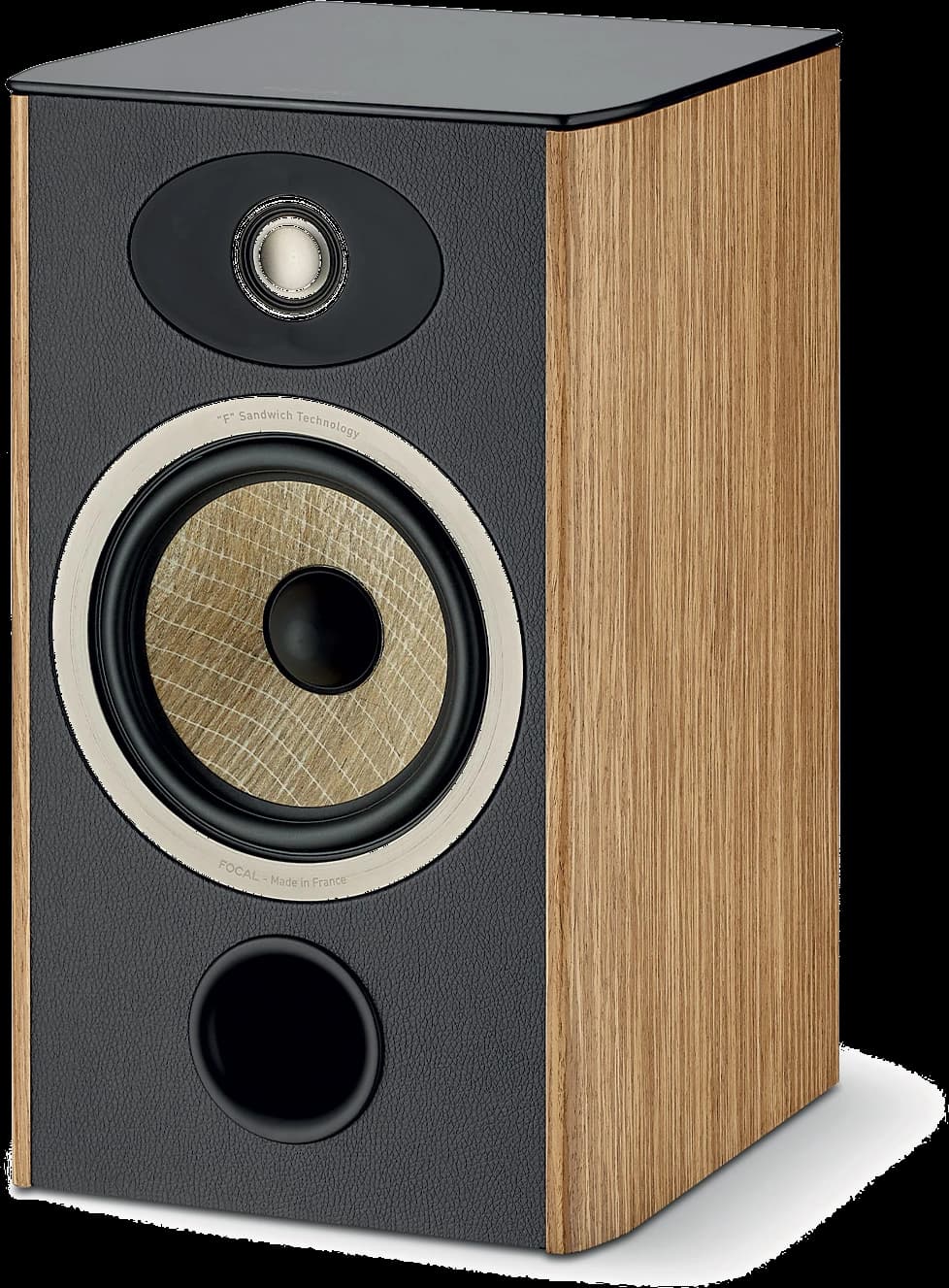

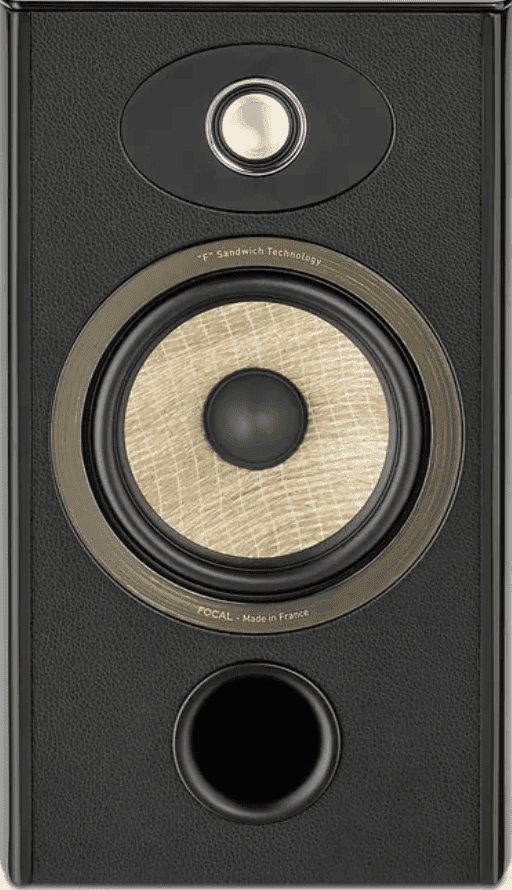

Aria Evo X N°1
Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | Cone area | |
|---|---|---|---|---|---|
| Aria Evo X N°1 | 55 Hz | 30 kHz | 89.5 dB | 8 Ω | 219 cm² |
| Median | 45 Hz | 25 kHz | 87 dB | 6 Ω | 219 cm² |
How to read this chart
Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #299 of 470 bookshelf |
| Power | Passive |
| Height | 390 mm |
| Width | 224 mm |
| Depth | 225 mm |
| Footprint | 504 cm² |
| Space taken | 19.7 L |
| Weight | 8.5 kg |
| Enclosure | Bass reflex, front port |
| Drivers | 1× 25 mm tweeter (TAM aluminium-magnesium inverted dome), 1× 165 mm mid-bass (flax cone) |
| Frequency response | 55–30000 Hz (±3 dB) |
| Sensitivity | 89.5 dB |
| Impedance | 8 Ω (min 4.6 Ω) |
| Recommended amp | 25–120 W |
| MAP (USD) | $2,398 / pair |
| Where to buy | Check on Amazon ↗ |
| Manufacturer | focal.com ↗ |
| Product page | Open product page ↗ |
