Klipsch · Heritage · Floorstander

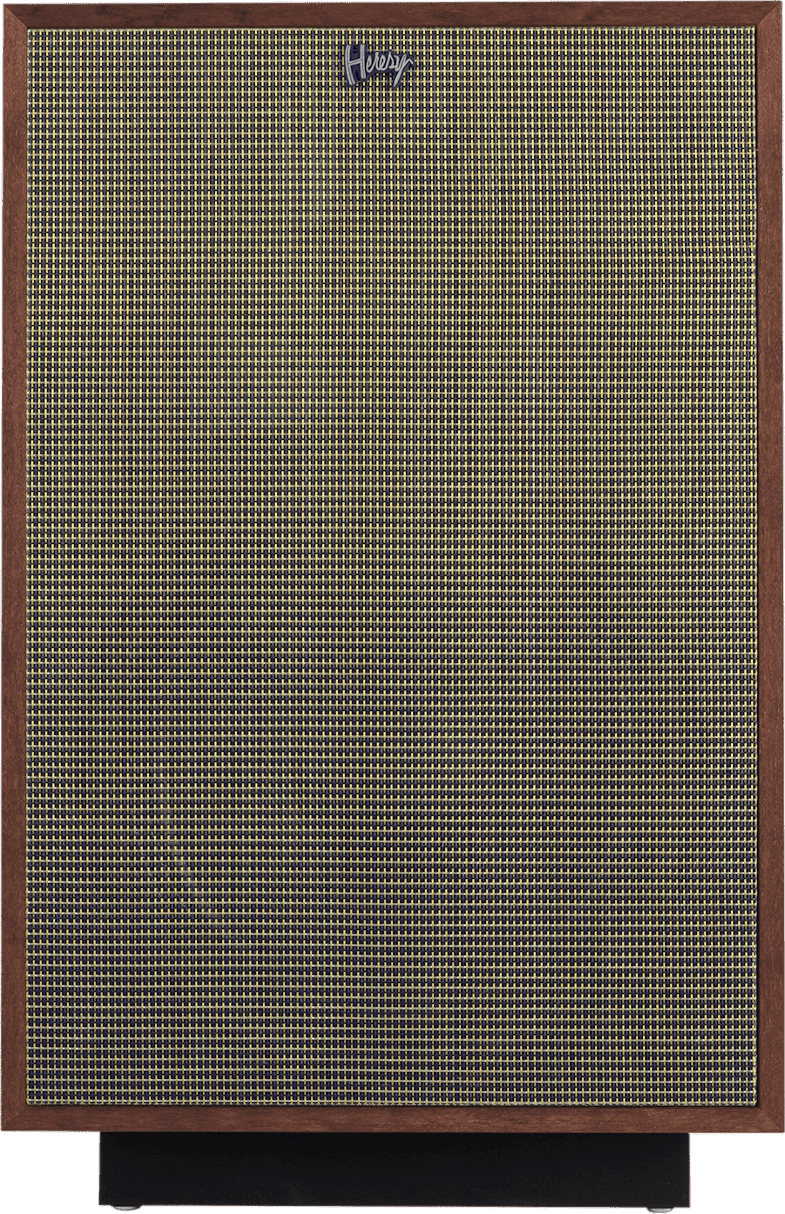

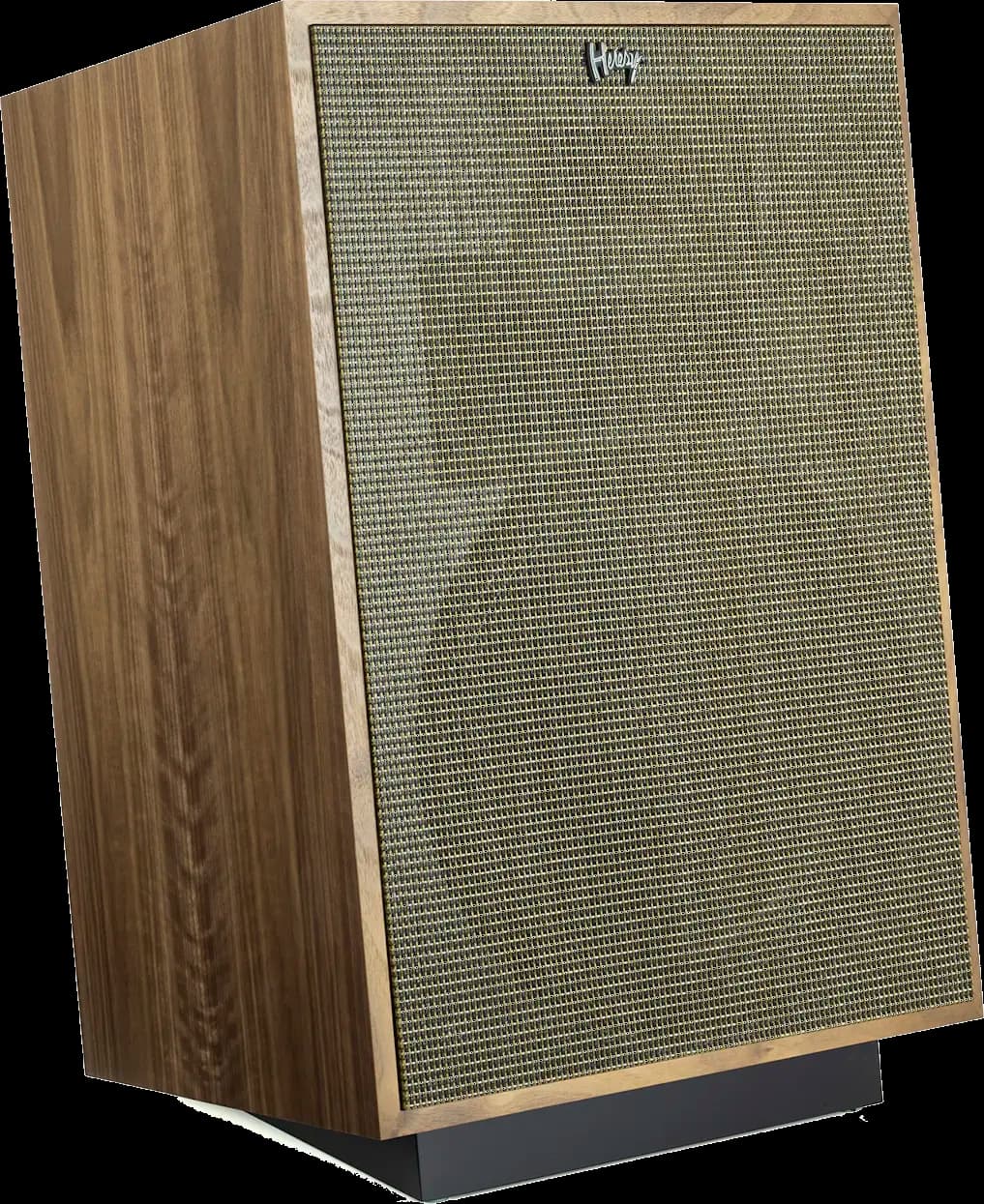

Heresy IV

$4,198 / pairCheck on Amazon ↗
Product description
A compact Heritage three-way horn-loaded floorstander, first introduced in 1957 and hand-built in Hope, Arkansas — a titanium tweeter and polyimide midrange on Tractrix horns over a 12-inch woofer, now with a rear Tractrix port for extended bass. At 99 dB it's a lively, low-power-friendly horn speaker that suits stands or a low listening position.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Heresy IV48 Hz20 kHz99 dB8 Ω751 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#2 of 648 floorstander
PowerPassive
Height630 mm
Width407 mm
Depth337 mm
Footprint1372 cm²
Space taken86.4 L
Weight20.4 kg
EnclosureBass reflex, rear port
Drivers1× 25 mm tweeter (K-107-TI titanium compression diaphragm), 1× 44 mm midrange (K-702 polyimide compression diaphragm), 1× 305 mm woofer (K-28-E fiber-composite cone)
Crossover frequency850 / 4500 Hz
Frequency response48–20000 Hz (±4 dB)
Sensitivity99 dB
Impedance8 Ω
Power handling100 W
MAP (USD)$4,198 / pair
Where to buyCheck on Amazon ↗
Manufacturerklipsch.com ↗
Product pageOpen product page ↗
