Monitor Audio · Hyphn · Floorstander

Hyphn

Product description

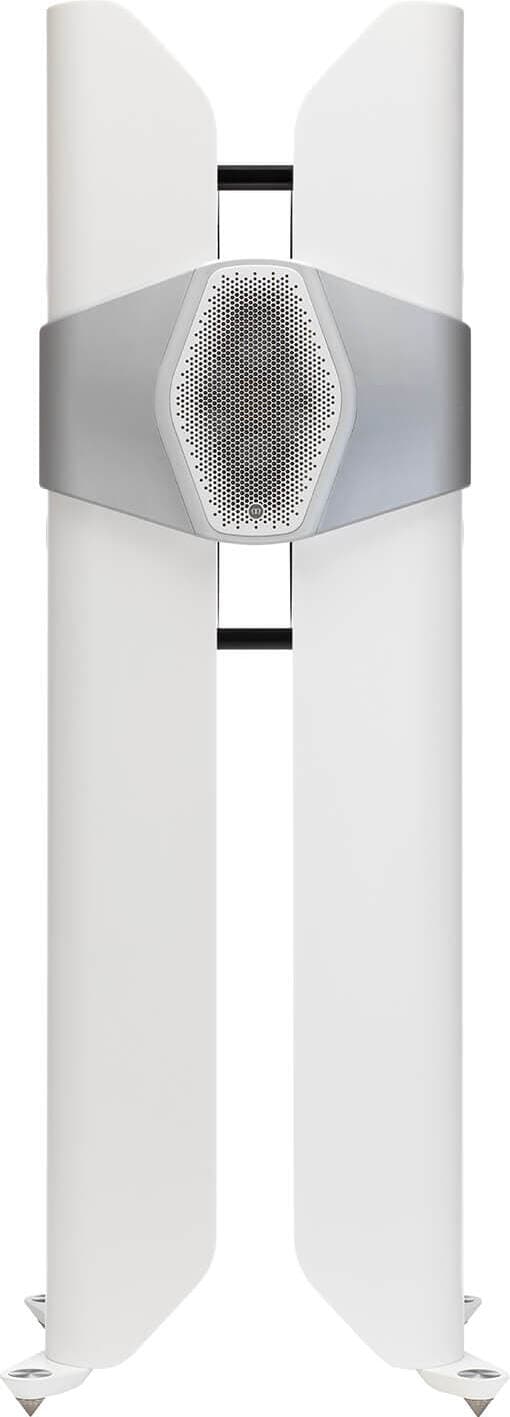

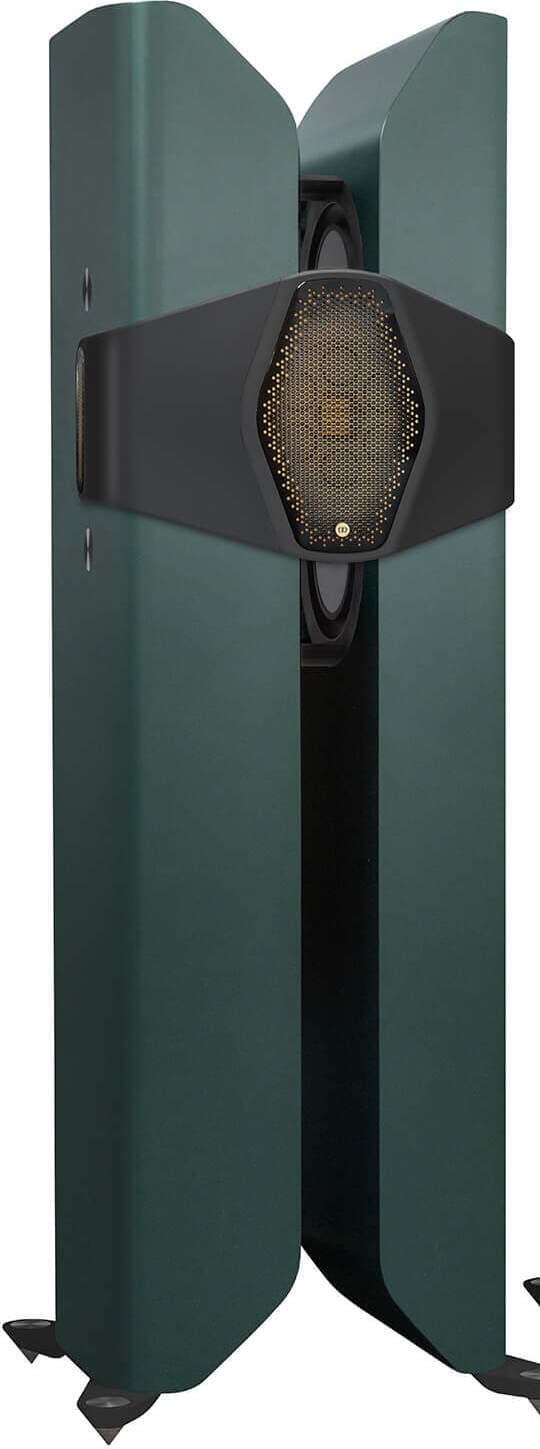

Monitor Audio's no-compromise statement — the Hyphn places the new M-Array (five small RDT III midranges around a central MPD III tweeter) between two twin-pillar bass towers loaded with force-cancelled 8-inch woofers. A bespoke crossover and CNC-machined cabinet make it the brand's most ambitious design, for a large dedicated room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Hyphn18 Hz60 kHz86 dB4 Ω
Median32 Hz30 kHz90 dB6 Ω
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeFloorstander
HiFi ladder position#570 of 648 floorstander
PowerPassive
Height1392 mm
Width501 mm
Depth520 mm
Footprint2605 cm²
Space taken362.6 L
Weight106.9 kg
EnclosureBass reflex, down-firing port
Port tuning25 Hz
Drivers1× tweeter (MPD III — Micro Pleated Diaphragm), 6× 50 mm midrange (RDT III — Rigid Diaphragm Technology), 4× 200 mm woofer (RDT III, force-cancelled)
Crossover frequency350 / 3700 Hz
Frequency response18–60000 Hz (±6 dB)
Sensitivity86 dB
Impedance4 Ω (min 3.5 Ω)
Power handling800 W
Recommended amp200–1600 W
MAP (USD)$49,500 / pair
