Monitor Audio · Platinum · Bookshelf

Platinum 100 3G

Product description

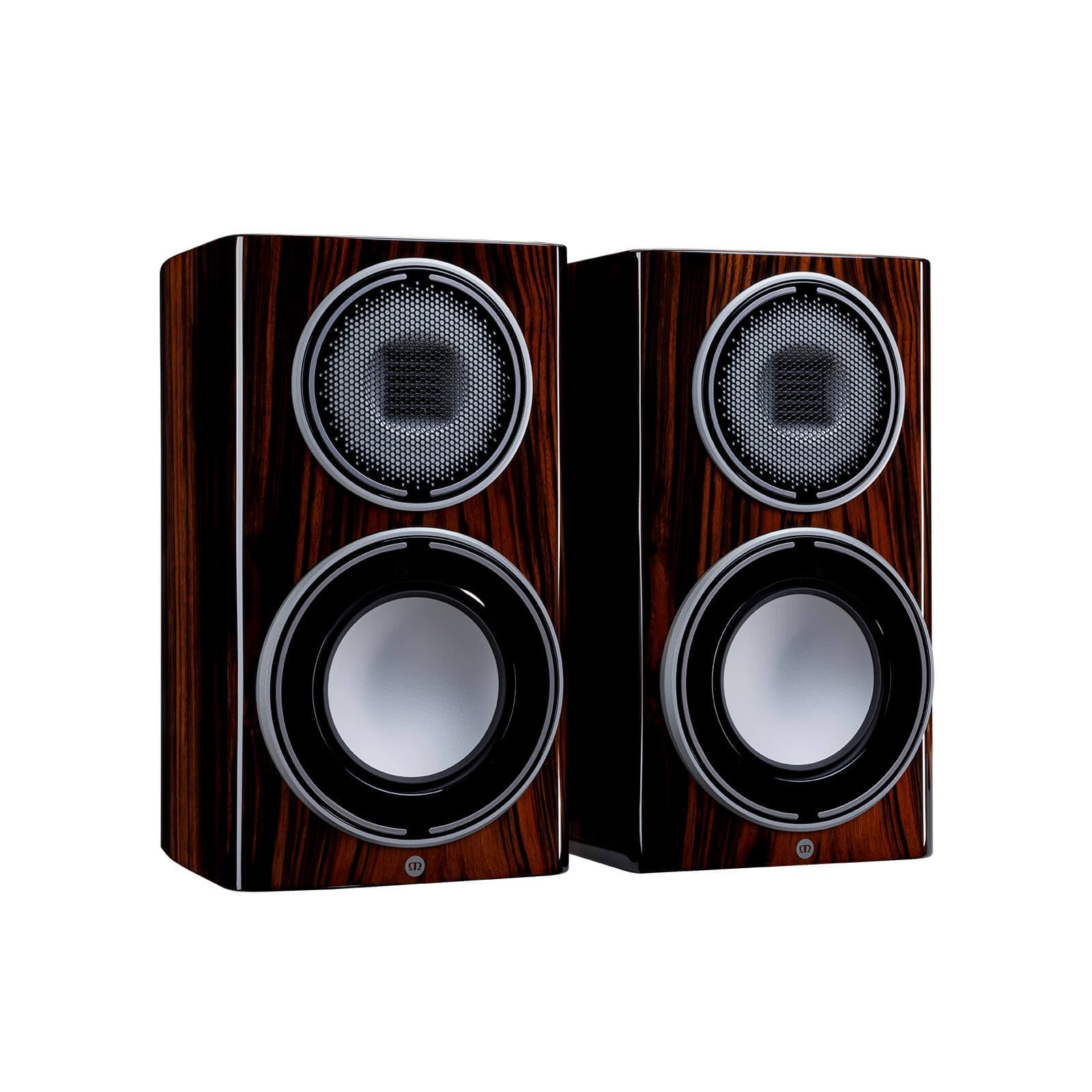

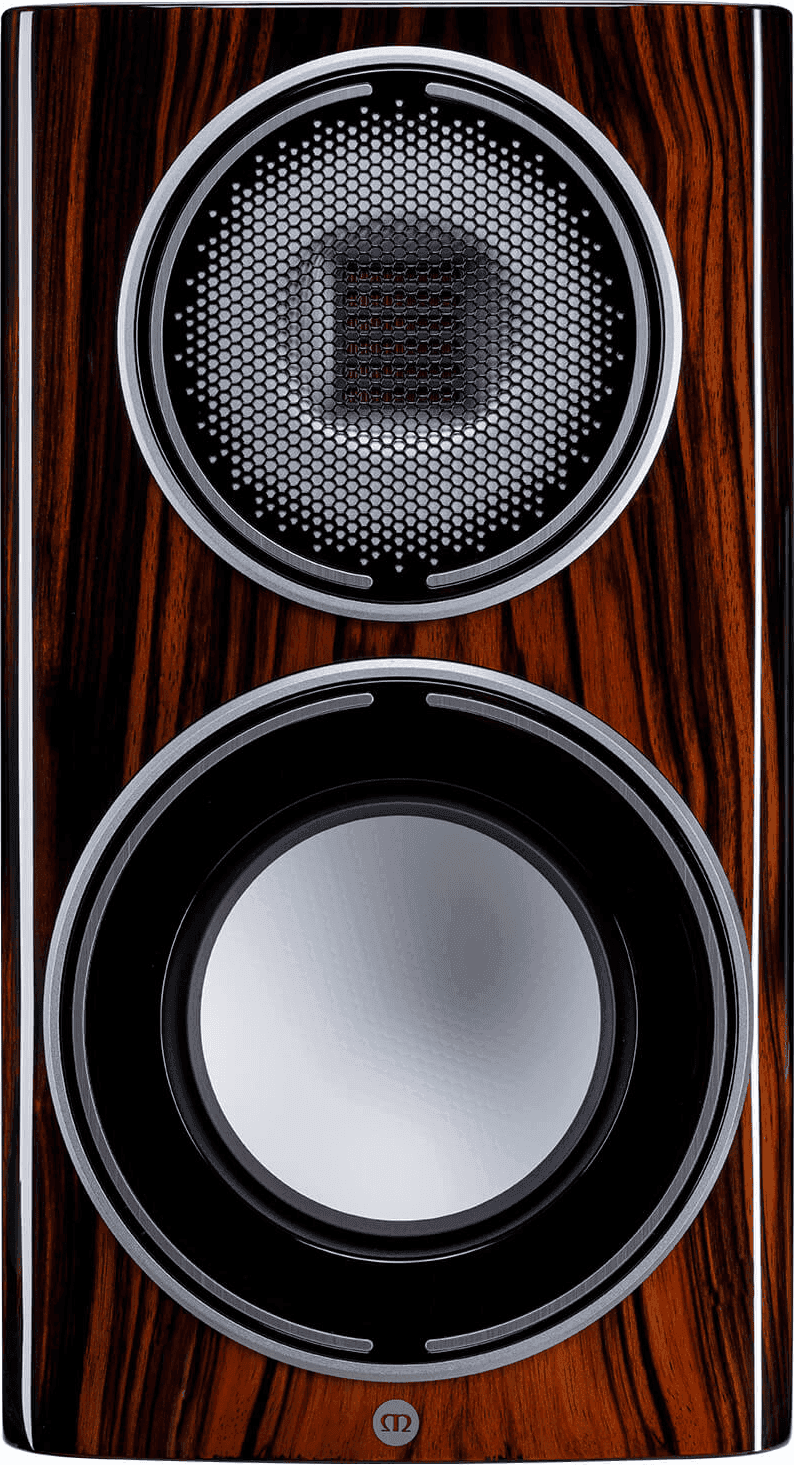

A flagship-level stand-mount of the Platinum 3G line — the MPD III Air Motion Transformer tweeter and an 8-inch RDT III mid-bass in a sculpted, hand-finished cabinet built for vanishingly low coloration. One of the most resolving bookshelves Monitor Audio makes, for a small-to-mid high-end room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Platinum 10028 Hz60 kHz85 dB4 Ω
Median45 Hz25 kHz87 dB6 Ω
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeBookshelf
HiFi ladder position#311 of 470 bookshelf
PowerPassive
Height398 mm
Width225 mm
Depth325.6 mm
Footprint703 cm²
Space taken28 L
Weight15.2 kg
EnclosureBass reflex, rear port
Port tuning44 Hz
Drivers1× tweeter (MPD III (Air Motion Transformer)), 1× 152 mm mid-bass (RDT III C-CAM)
Crossover frequency2850 Hz
Frequency response28–60000 Hz (±6 dB)
Sensitivity85 dB
Impedance4 Ω (min 4 Ω)
Power handling150 W
Recommended amp75–300 W
MAP (USD)$7,599 / pair
