Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | |
|---|---|---|---|---|
| Platinum 200 | 23 Hz | 60 kHz | 88 dB | 4 Ω |
| Median | 32 Hz | 30 kHz | 90 dB | 6 Ω |
How to read this chart
Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
CantonReference 3
TriangleMagellan Quatuor 40th
ELACConcentro S 507.2 2.0
KEFReference 3 Meta
RevelStudio2Monitor Audio · Platinum · Floorstander

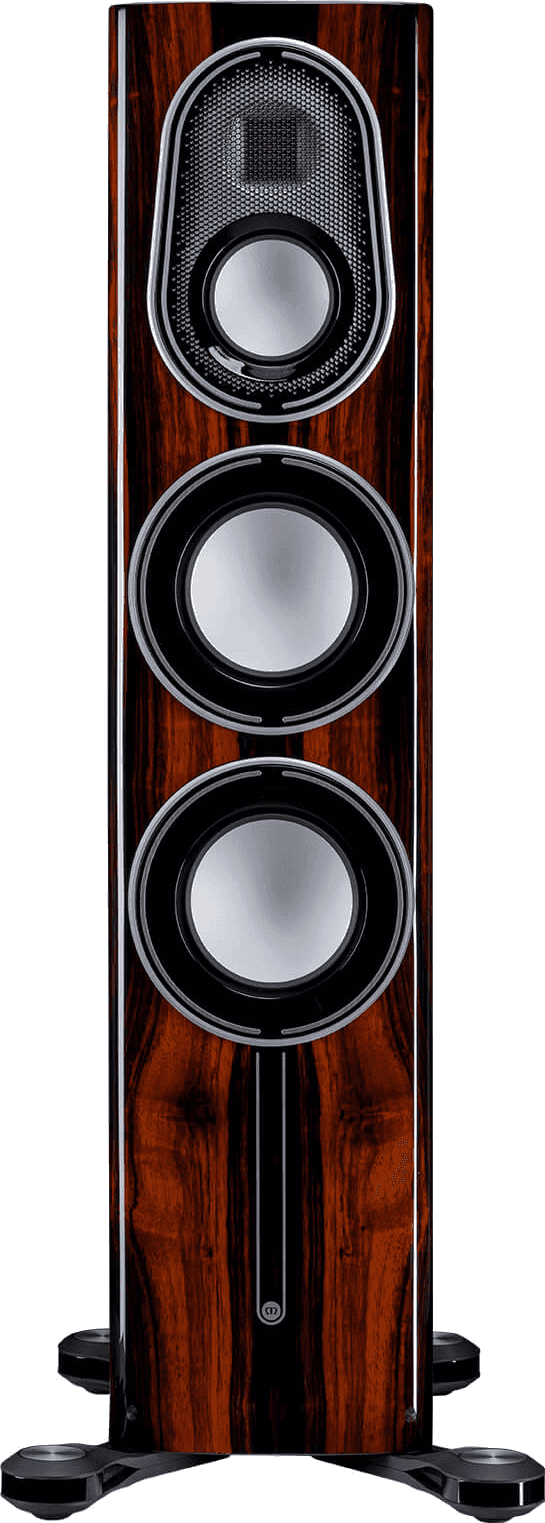

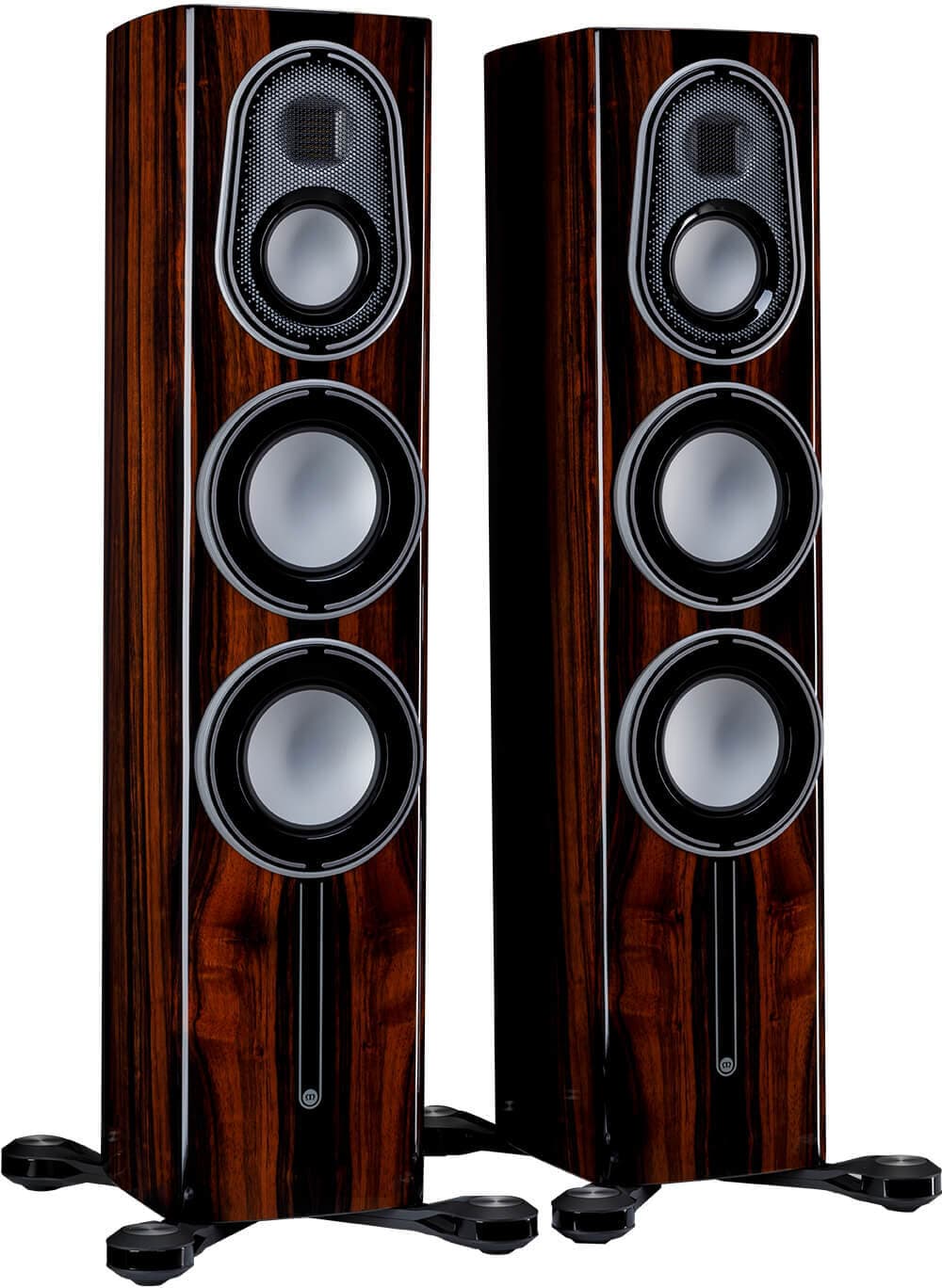

Platinum 200 3G
Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | |
|---|---|---|---|---|
| Platinum 200 | 23 Hz | 60 kHz | 88 dB | 4 Ω |
| Median | 32 Hz | 30 kHz | 90 dB | 6 Ω |
How to read this chart
Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.
| Type | Floorstander |
|---|---|
| HiFi ladder position | #212 of 648 floorstander |
| Power | Passive |
| Height | 1042 mm |
| Width | 369 mm |
| Depth | 455 mm |
| Footprint | 1679 cm² |
| Space taken | 174.9 L |
| Weight | 35.8 kg |
| Enclosure | Bass reflex, rear port |
| Port tuning | 38 Hz |
| Drivers | 1× tweeter (MPD III (Air Motion Transformer)), 1× 100 mm midrange (RDT III C-CAM), 2× 152 mm woofer (RDT III C-CAM) |
| Crossover frequency | 825 / 3000 Hz |
| Frequency response | 23–60000 Hz (±6 dB) |
| Sensitivity | 88 dB |
| Impedance | 4 Ω (min 4 Ω) |
| Power handling | 600 W |
| Recommended amp | 150–600 W |
| MAP (USD) | $15,299 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | monitoraudio.com ↗ |
| Product page | Open product page ↗ |
