Monitor Audio · Studio · Bookshelf

Studio 89

Product description

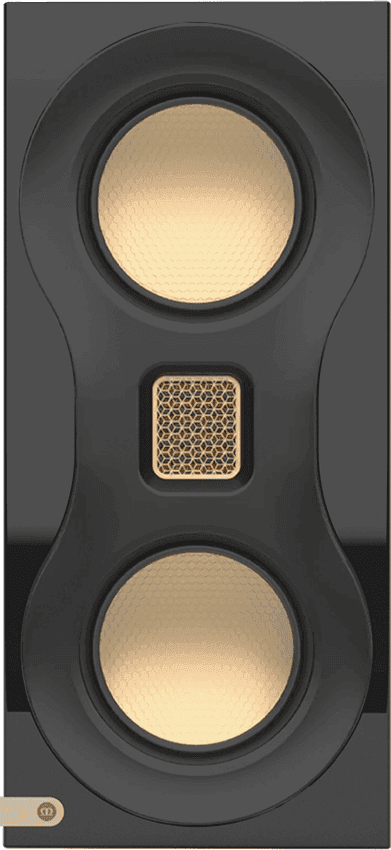

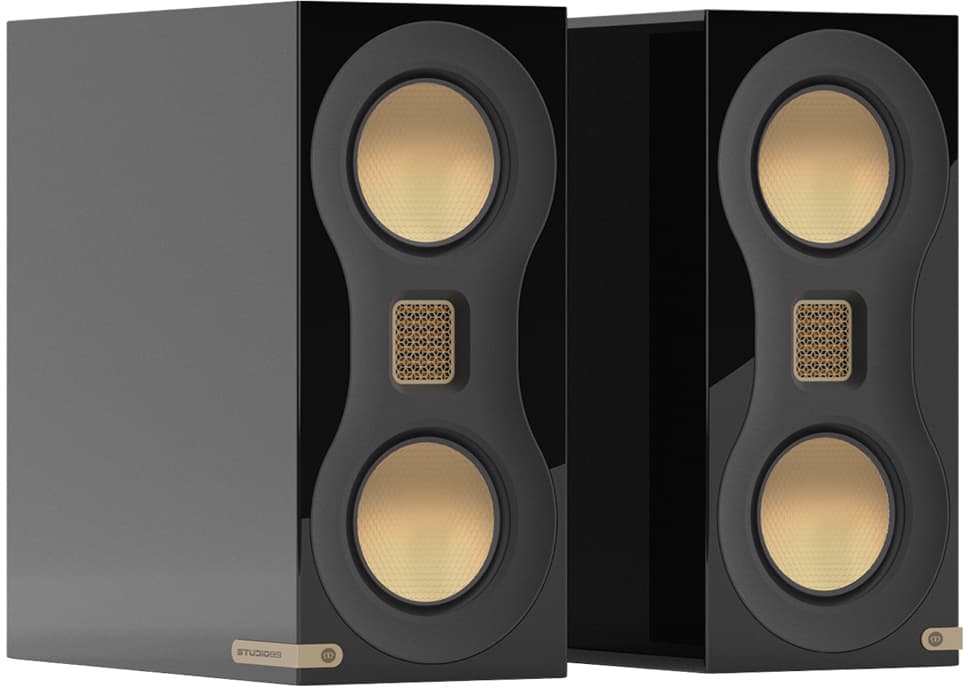

A compact MTM (mid-tweeter-mid) bookshelf — Monitor Audio's MPD III Air Motion Transformer tweeter flanked by two 4¼-inch RDT III drivers, rear-ported. The MTM array tightens vertical directivity, making it a refined, controlled stand-mount for a small-to-mid room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Studio 8948 Hz60 kHz86 dB6 Ω
Median45 Hz25 kHz87 dB6 Ω
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeBookshelf
HiFi ladder position#185 of 470 bookshelf
PowerPassive
Height340 mm
Width157 mm
Depth361 mm
Footprint567 cm²
Space taken19.3 L
Weight7.6 kg
EnclosureBass reflex, rear port
Port tuning58 Hz
Drivers1× tweeter (MPD III (Air Motion Transformer)), 2× 108 mm mid-bass (RDT III C-CAM)
Crossover frequency2400 Hz
Frequency response48–60000 Hz (±6 dB)
Sensitivity86 dB
Impedance6 Ω (min 4.2 Ω)
Power handling300 W
Recommended amp50–300 W
MAP (USD)$2,500 / pair
