Founder 40B

Product description

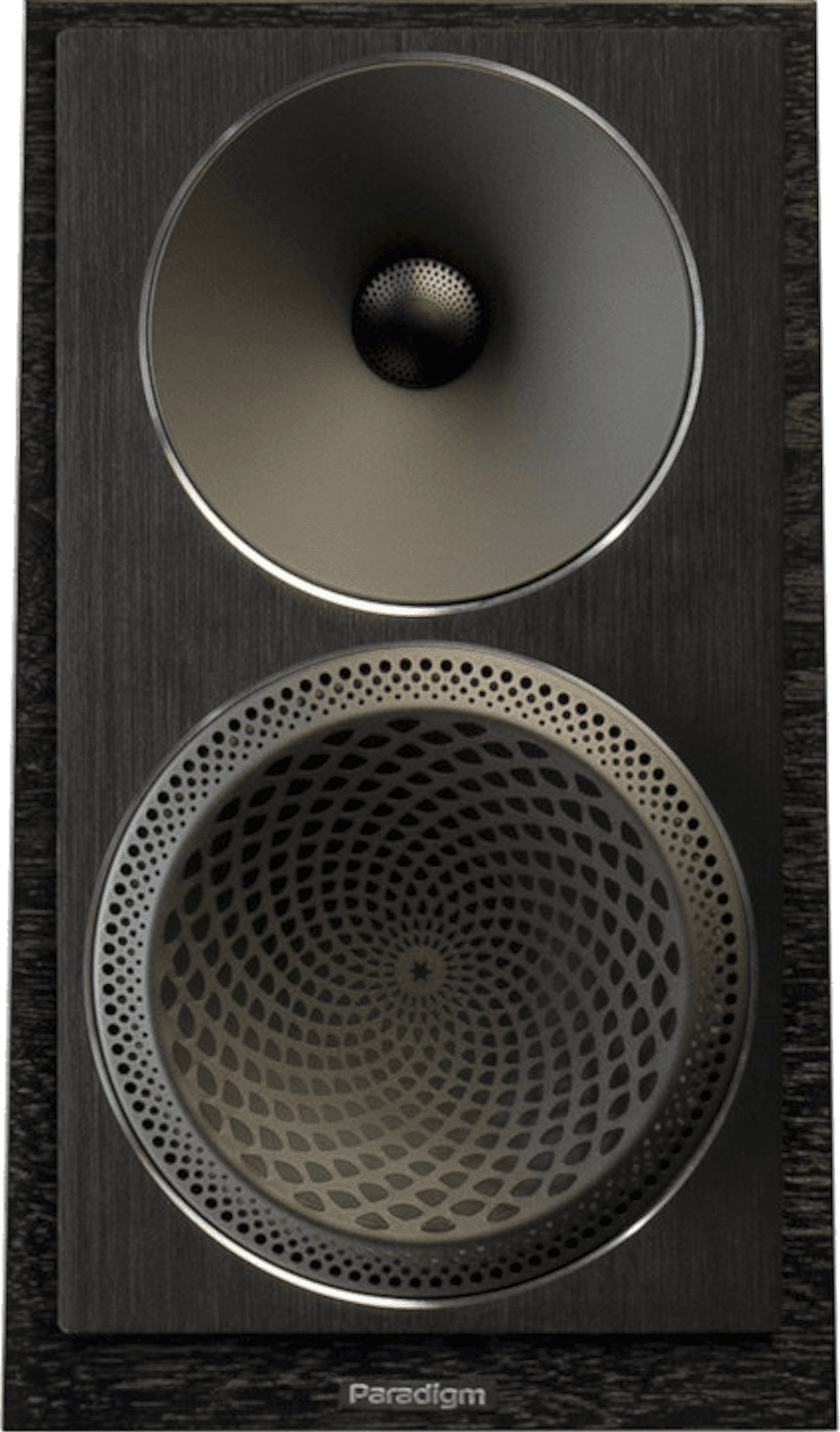

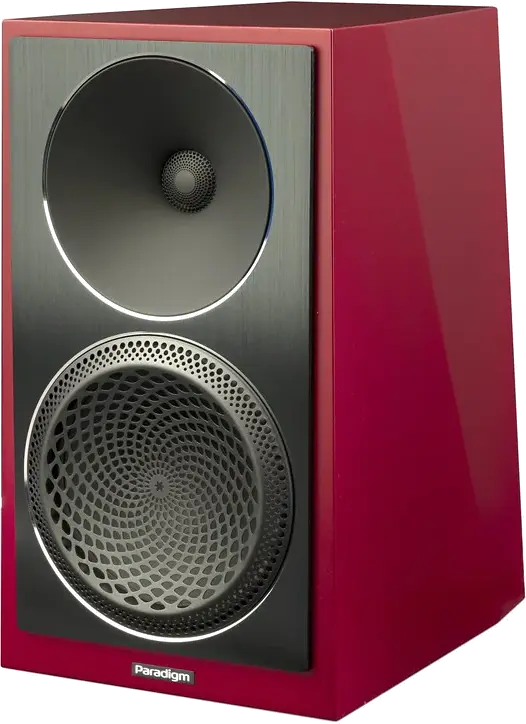

A compact two-way Founder stand-mount hand-built in Canada — a 25 mm AL-MAC ceramic tweeter on an Oblate Spherical Waveguide with a 152 mm AL-MAG midrange/bass driver in a faceted, Cascade-Fusion-braced cabinet. A refined high-end bookshelf for a small-to-mid room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Founder 40B69 Hz23 kHz89 dB8 Ω186 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 485 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 387 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#263 of 485 bookshelf
PowerPassive
Height368 mm
Width216 mm
Depth320 mm
Footprint691 cm²
Space taken25.4 L
Weight5.1 kg
EnclosureBass reflex, rear port
Drivers1× 25 mm tweeter (AL-MAC ceramic dome), 1× 152 mm mid-bass (AL-MAG cone)
Crossover frequency1600 Hz
Frequency response69–23000 Hz (±2 dB)
Sensitivity89 dB
Impedance8 Ω
Recommended amp15–150 W
MAP (USD)$2,200 / pair
Where to buyCheck availability ↗
Manufacturerparadigm.com ↗
Product pageOpen product page ↗
