Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | Cone area | |
|---|---|---|---|---|---|
| Aida | 18 Hz | 35 kHz | 92 dB | 4 Ω | 1825 cm² |
| Median | 32 Hz | 30 kHz | 90 dB | 6 Ω | 654 cm² |
How to read this chart
Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

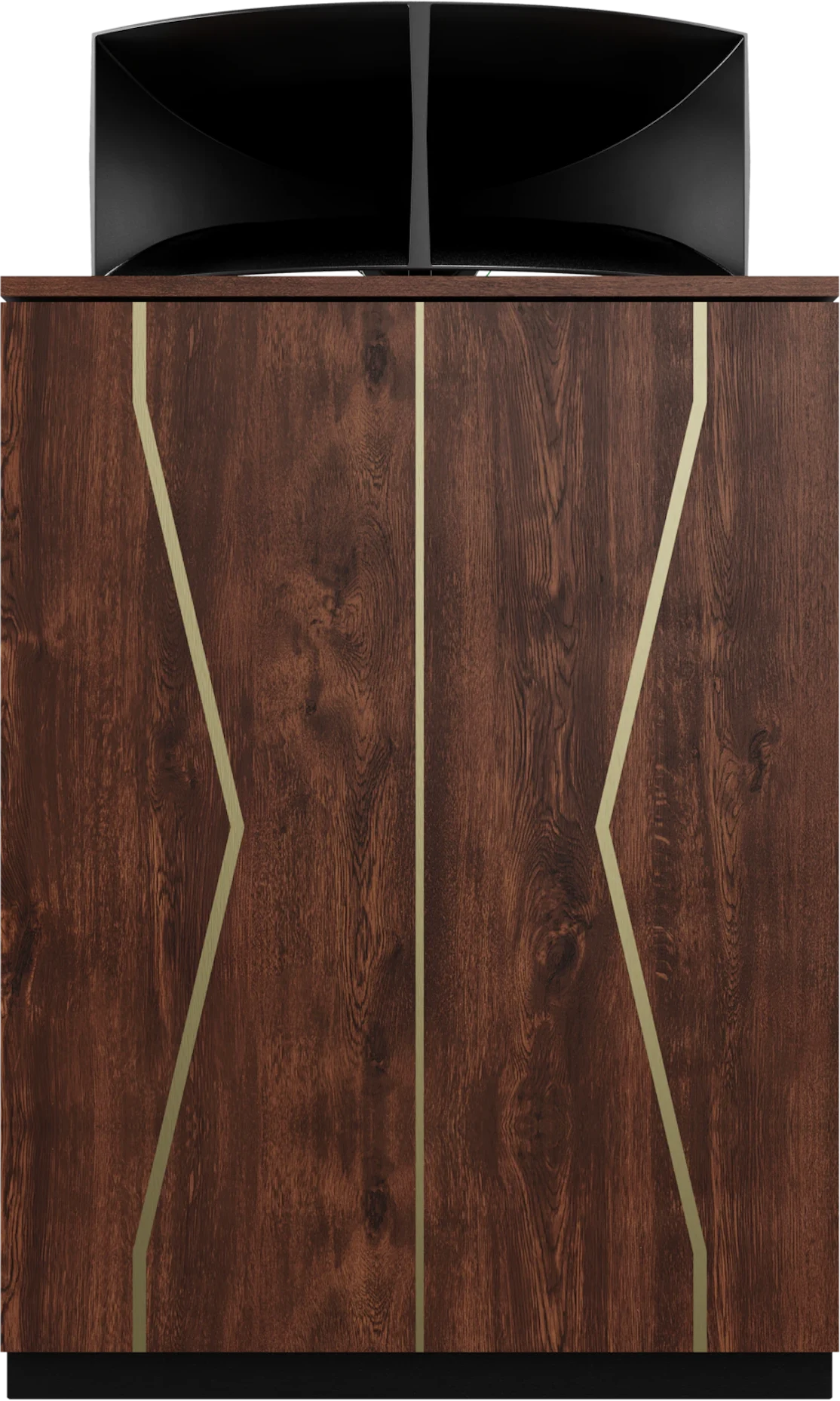

Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Sonus Faber · Reference · Floorstander
Aida
Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | Cone area | |
|---|---|---|---|---|---|
| Aida | 18 Hz | 35 kHz | 92 dB | 4 Ω | 1825 cm² |
| Median | 32 Hz | 30 kHz | 90 dB | 6 Ω | 654 cm² |
How to read this chart
Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.
| Type | Floorstander |
|---|---|
| HiFi ladder position | #622 of 648 floorstander |
| Power | Passive |
| Height | 1725 mm |
| Width | 470 mm |
| Depth | 780 mm |
| Footprint | 3666 cm² |
| Space taken | 632.4 L |
| Weight | 165 kg |
| Enclosure | Bass reflex, down-firing port |
| Drivers | 1× 28 mm tweeter (H28 XTR soft dome with DAD), 1× 180 mm midrange (M18 paper cone), 2× 220 mm woofer (W22 paper cone), 1× 320 mm woofer (SW32 paper cone) |
| Crossover frequency | 55 / 150 / 200 / 3000 Hz |
| Frequency response | 18–35000 Hz |
| Sensitivity | 92 dB |
| Impedance | 4 Ω |
| Recommended amp | 100–1000 W |
| MAP (USD) | $160,000 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | sonusfaber.com ↗ |
| Product page | Open product page ↗ |
