T+A · Solitaire · Floorstander

Solitaire S 540

Product description
The flagship Solitaire floorstander — the magnetostat tweeter with a seven-driver 90 mm midrange array over four 220 mm aluminium woofers in a sealed cabinet. Sealed loading and four woofers give tight, controlled bass to 20 Hz, T+A's statement speaker for a large dedicated room, built in Herford, Germany.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Solitaire S 54020 Hz45 kHz88 dB4 Ω
Median32 Hz30 kHz90 dB6 Ω
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeFloorstander
HiFi ladder position#587 of 648 floorstander
PowerPassive
Height1480 mm
Width320 mm
Depth520 mm
Footprint2278 cm²
Space taken337.1 L
Weight80 kg
EnclosureSealed

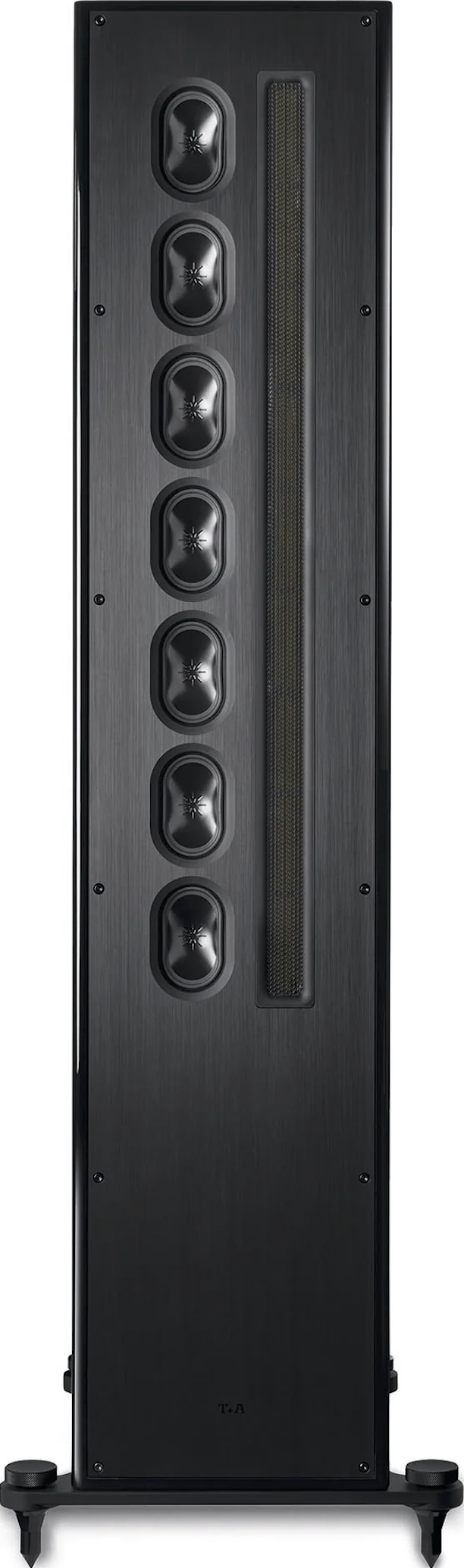

Drivers1× tweeter (magnetostat), 7× 90 mm midrange (StarStabilizer), 4× 220 mm woofer (aluminium)
Crossover frequency180 / 1800 Hz
Frequency response20–45000 Hz
Sensitivity88 dB
Impedance4 Ω
Power handling240–300 W
MAP (USD)$54,900 / pair
Where to buyCheck availability ↗
Manufacturerta-hifi.de ↗
Product pageOpen product page ↗
