Wharfedale · Elysian · Bookshelf

Elysian 2

Product description

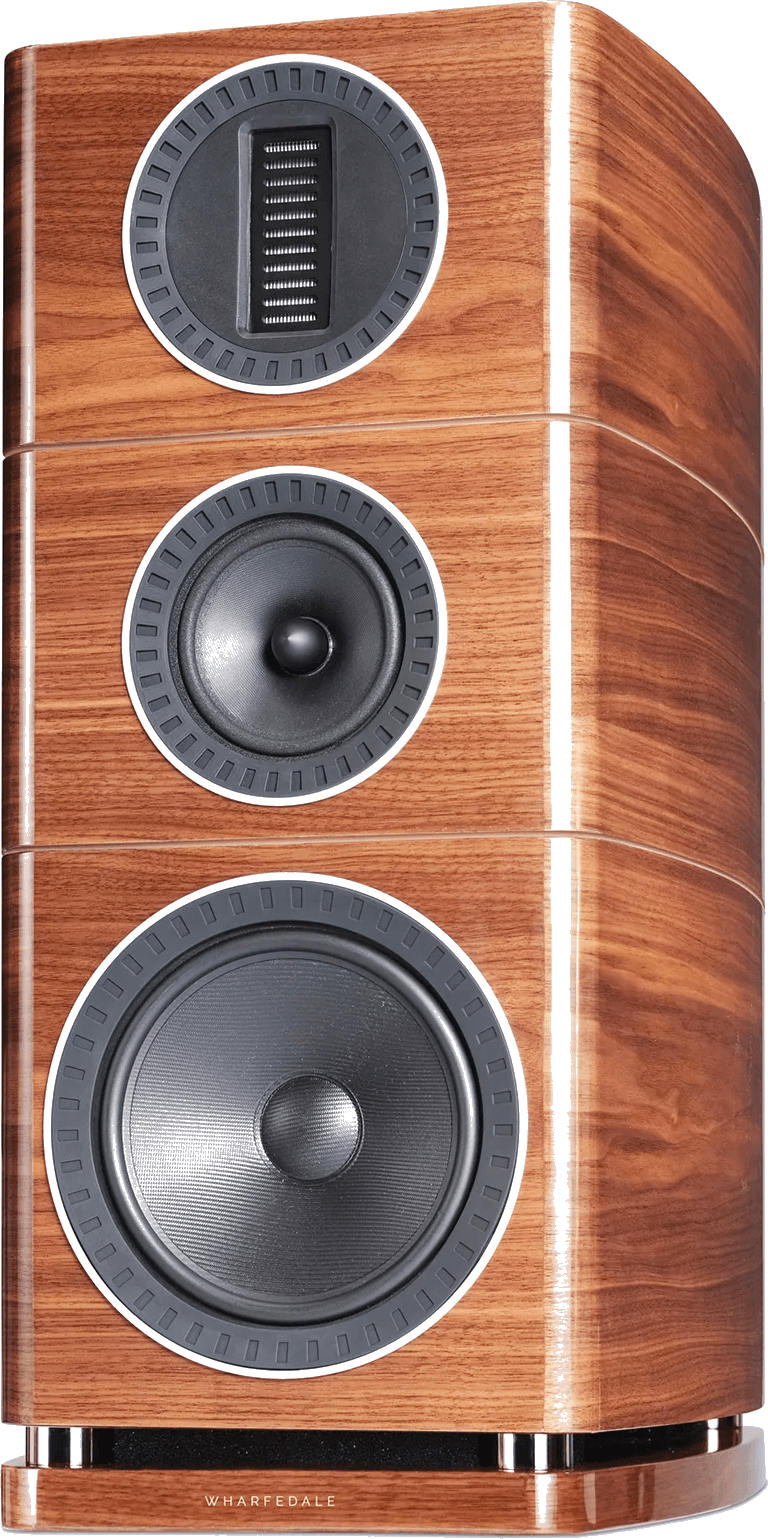

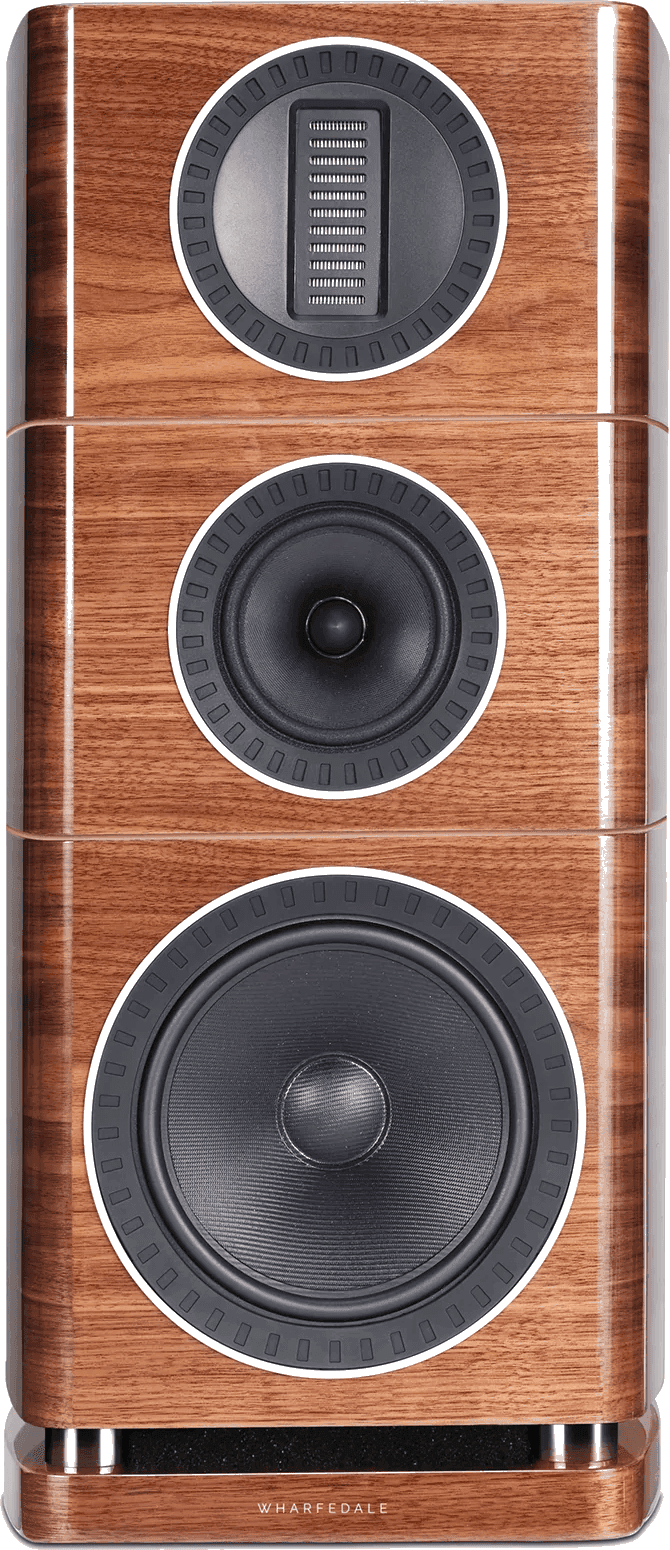

A large three-way Elysian stand-mount — a dedicated 6-inch midrange between the AMT tweeter and an 8½-inch woofer, in a hand-polished piano-lacquer cabinet with an SLPP port reaching 35 Hz. Closer to a floorstander than a bookshelf in presence and bass, on heavy stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Elysian 235 Hz22 kHz89 dB4 Ω620 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#457 of 470 bookshelf
PowerPassive
Height700 mm
Width303 mm
Depth462 mm
Footprint1400 cm²
Space taken98 L
Weight30.5 kg
EnclosureBass reflex, down-firing port
Drivers1× 90 mm tweeter (AMT), 1× 150 mm midrange (coated glass-fibre matrix cone), 1× 220 mm woofer (coated glass-fibre matrix cone)
Crossover frequency360 / 2900 Hz
Frequency response35–22000 Hz (±3 dB)
Sensitivity89 dB
Impedance4 Ω (min 3.6 Ω)
Recommended amp25–250 W
MAP (USD)$6,995 / pair
Where to buyCheck availability ↗
Manufacturerwharfedale.co.uk ↗
Product pageOpen product page ↗
