Wharfedale · Elysian · Floorstander

Elysian 4

Product description

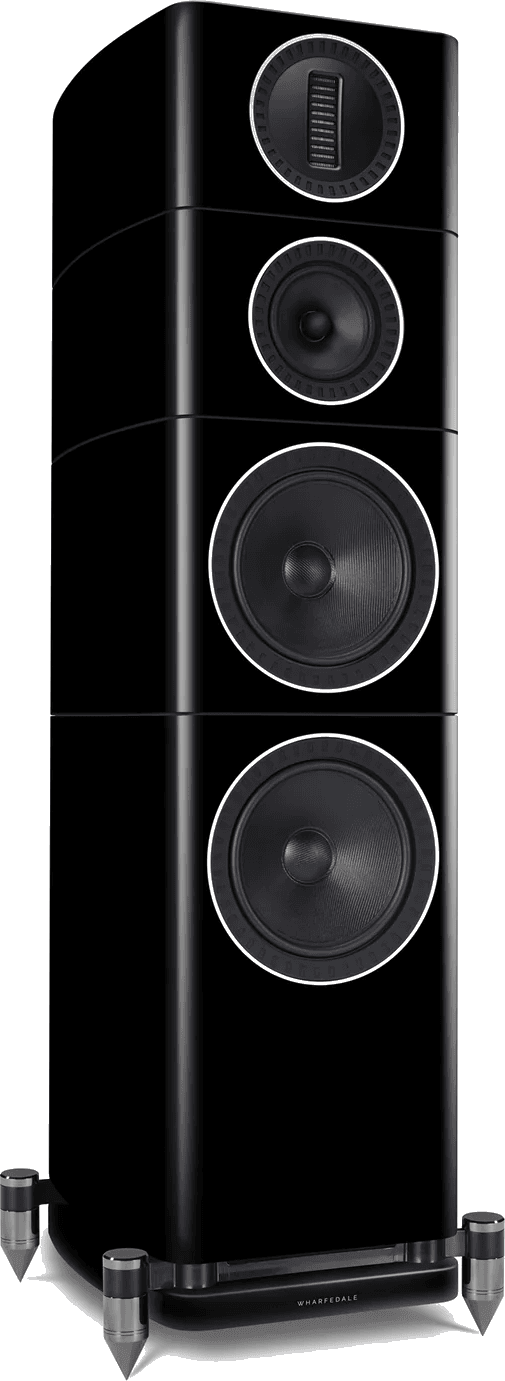

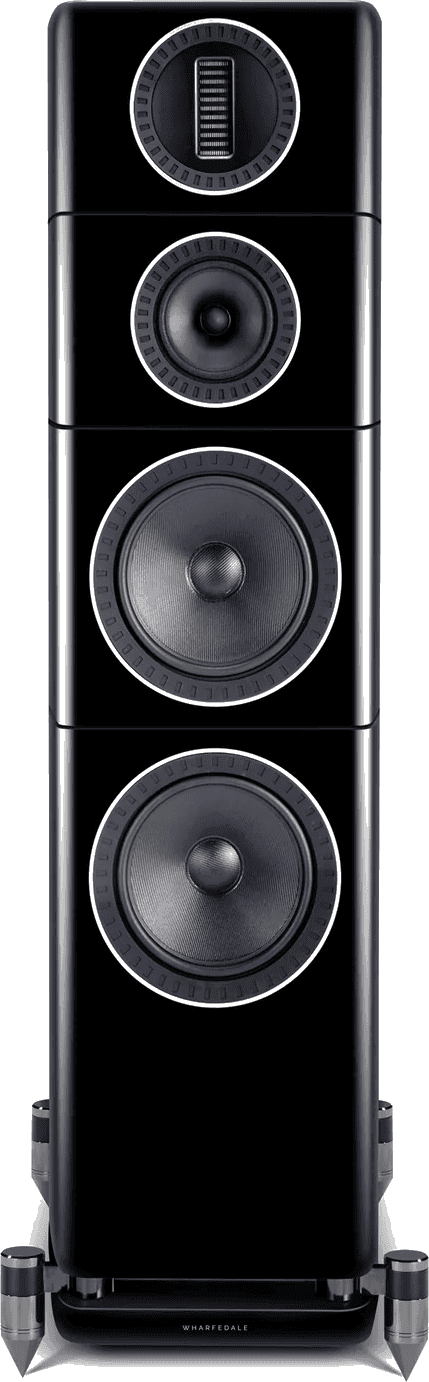

The flagship of Wharfedale's flagship line — a three-way floorstander with twin 8½-inch glass-fibre woofers, a 6-inch midrange and the AMT, reaching 30 Hz at 92 dB. Its PROS-braced, hand-polished piano-lacquer cabinet makes it the most ambitious speaker Wharfedale builds, for a large room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Elysian 430 Hz22 kHz92 dB4 Ω1001 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#440 of 648 floorstander
PowerPassive
Height1188 mm
Width369 mm
Depth462 mm
Footprint1705 cm²
Space taken202.5 L
Weight49.5 kg
EnclosureBass reflex, down-firing port
Drivers1× 90 mm tweeter (AMT), 1× 150 mm midrange (coated glass-fibre matrix cone), 2× 220 mm woofer (coated glass-fibre matrix cone)
Crossover frequency340 / 3100 Hz
Frequency response30–22000 Hz (±3 dB)
Sensitivity92 dB
Impedance4 Ω (min 3.2 Ω)
Recommended amp15–250 W
MAP (USD)$8,995 / pair
Where to buyCheck availability ↗
Manufacturerwharfedale.co.uk ↗
Product pageOpen product page ↗
