Wharfedale · EVO · Floorstander

EVO 5.4

Product description

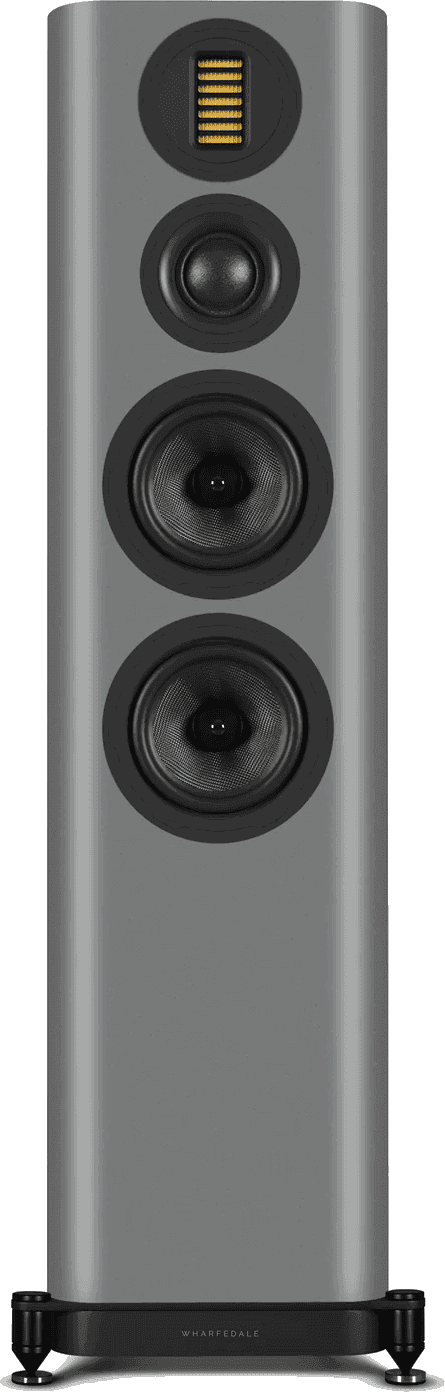

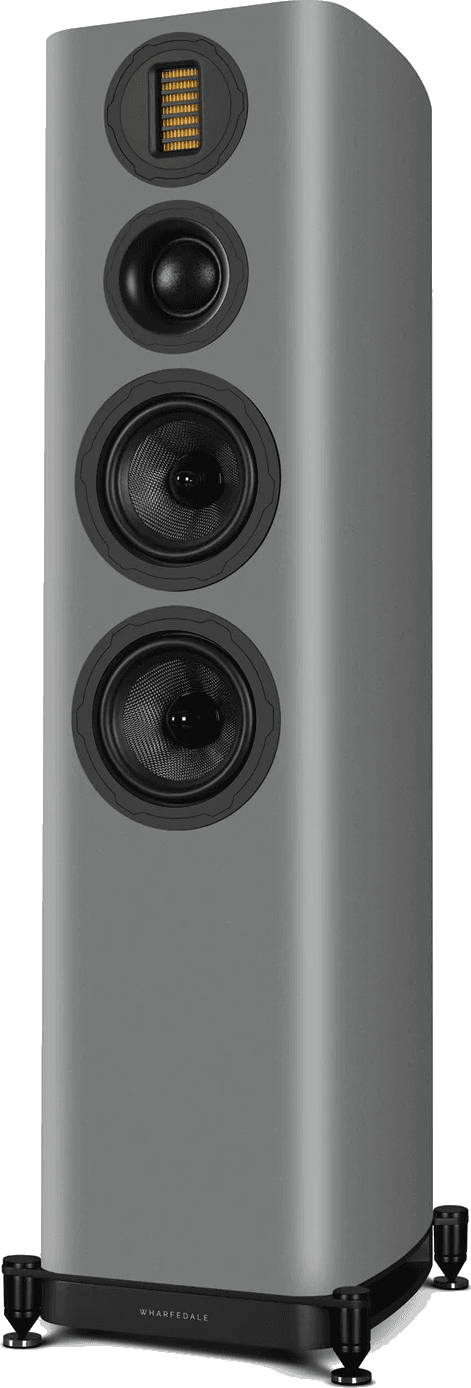

The flagship floorstander of the EVO 5 range — a three-way with twin 6½-inch Kevlar woofers, a 2-inch soft-dome midrange and the AMT tweeter, reaching 42 Hz at 90 dB. Its SLPP port and PROS-style bracing target controlled bass and easy dynamics in a larger room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
EVO 5.442 Hz24 kHz90 dB4 Ω486 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#187 of 648 floorstander
PowerPassive
Height1028 mm
Width302 mm
Depth390 mm
Footprint1178 cm²
Space taken121.1 L
Weight31.2 kg
EnclosureBass reflex, down-firing port
Drivers1× 70 mm tweeter (AMT), 1× 50 mm midrange (soft dome), 2× 165 mm woofer (woven Kevlar cone)
Crossover frequency1100 / 4000 Hz
Frequency response42–24000 Hz (±3 dB)
Sensitivity90 dB
Impedance4 Ω (min 4.3 Ω)
Recommended amp30–200 W
MAP (USD)$2,199 / pair
Where to buyCheck availability ↗
Manufacturerwharfedale.co.uk ↗
Product pageOpen product page ↗
