Compare speakers at true scale
Pick two speakers and see them side by side at their real-world size.
References
Front view — side by side at true scale
AGenelec 8320ABNeumann KH 80 DSP
Click either cabinet to swap A ↔ B · Reference height: 242 mm (24.2 cm) · 1 mm = 2.31 px

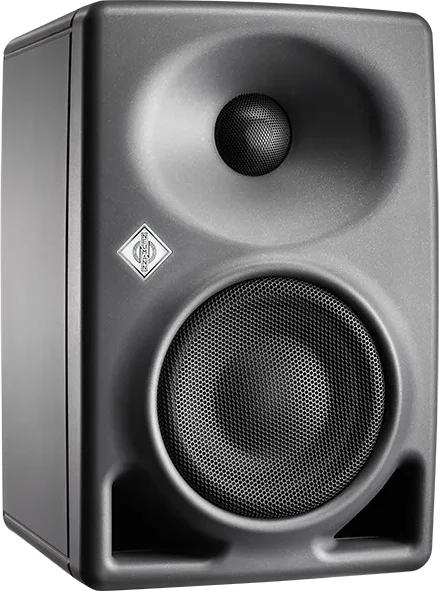

Genelec 8320AvsNeumann KH 80 DSP
The Genelec 8320A and the Neumann KH 80 DSP stand at nearly the same height, around 24.2 cm tall. The Genelec 8320A reaches deeper in the bass, down to 55 Hz versus 57 Hz. The Genelec 8320A is rear-ported and the Neumann KH 80 DSP is front-ported. On price, the Genelec 8320A sits higher — about $850 a pair against $599 for the Neumann KH 80 DSP.
| A | B | |
|---|---|---|
| Manufacturer | Genelec | Neumann |
| Model | 8320A | KH 80 DSP |
| HiFi ladder position | #4 of 78 floorstander | #2 of 78 floorstander |
| Height | 242 mm | 233 mm |
| Width | 151 mm | 154 mm |
| Depth | 142 mm | 194 mm |
| Weight | 3.2 kg | 3.5 kg |
| Enclosure | bass-reflex-rear | bass-reflex-front |
| Drivers | 1× 19 mm tweeter (metal dome), 1× 105 mm mid-bass (cone) | 1× 25 mm tweeter (alloy fabric dome), 1× 100 mm woofer (composite sandwich cone) |
| Crossover frequency | 3000 Hz | 1800 Hz |
| Frequency — low | 55 Hz | 57 Hz |
| Frequency — high | 23000 Hz | 21000 Hz |
| Sensitivity | — | — |
| Impedance | — | — |
| Recommended amp | — | — |
| MAP (USD) | $850 each | $599 each |
| Where to buy | Check availability ↗ | Check availability ↗ |
| Brand website | genelec.com ↗ | neumann.com ↗ |
| Product page | Open product page ↗ | Open product page ↗ |
Larger value highlighted in green. For low-frequency extension, lower Hz = greater bass reach, so the deeper side is highlighted.
