ELAC · Carina · Bookshelf
Carina BS243.4
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

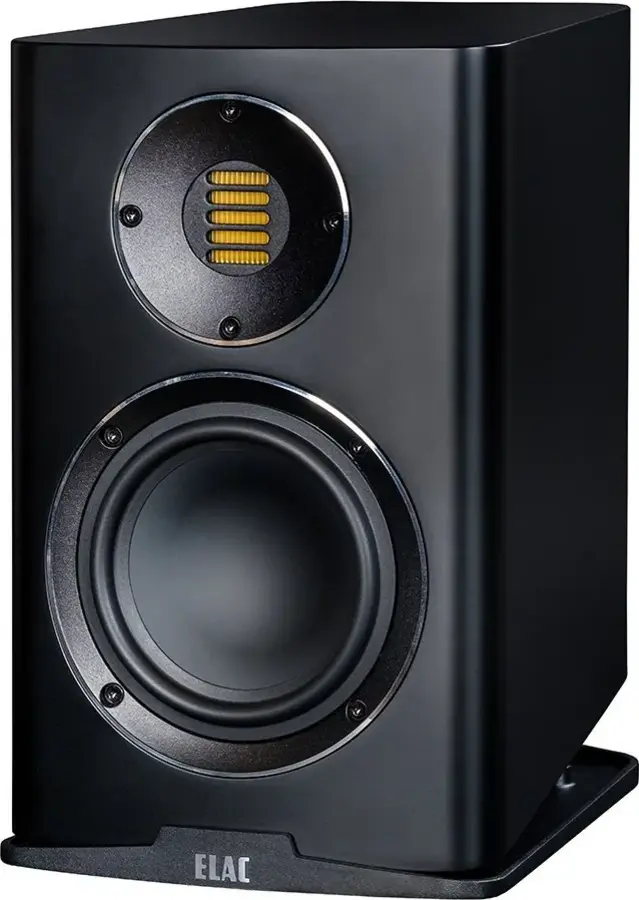

ELAC's Carina bookshelf — the entry point to the in-house JET tweeter family. A JET 5 pleated-folded ribbon sits above a 133 mm aluminium AS-XR woofer in a downward-ported cabinet. Reaches 46 Hz at 85 dB sensitivity, 6 Ω nominal (4.8 Ω min), 30-150 W amplifier window.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #72 of 255 bookshelf |
| Power | Passive |
| Height | 319 mm |
| Width | 206 mm |
| Depth | 245 mm |
| Weight | 6.7 kg |
| Enclosure | bass-reflex-down |
| Drivers | 1× tweeter (JET 5 pleated-folded ribbon), 1× 133 mm mid-bass (aluminium AS-XR cone) |
| Crossover frequency | 2700 Hz |
| Frequency response | 46–30000 Hz |
| Sensitivity | 85 dB |
| Impedance | 6 Ω (min 4.8 Ω) |
| Power handling | 100 W |
| Recommended amp | 30–150 W |
| MAP (USD) | $1,199 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | elac.com ↗ |
| Product page | Open product page ↗ |
