ELAC · Concentro · Bookshelf

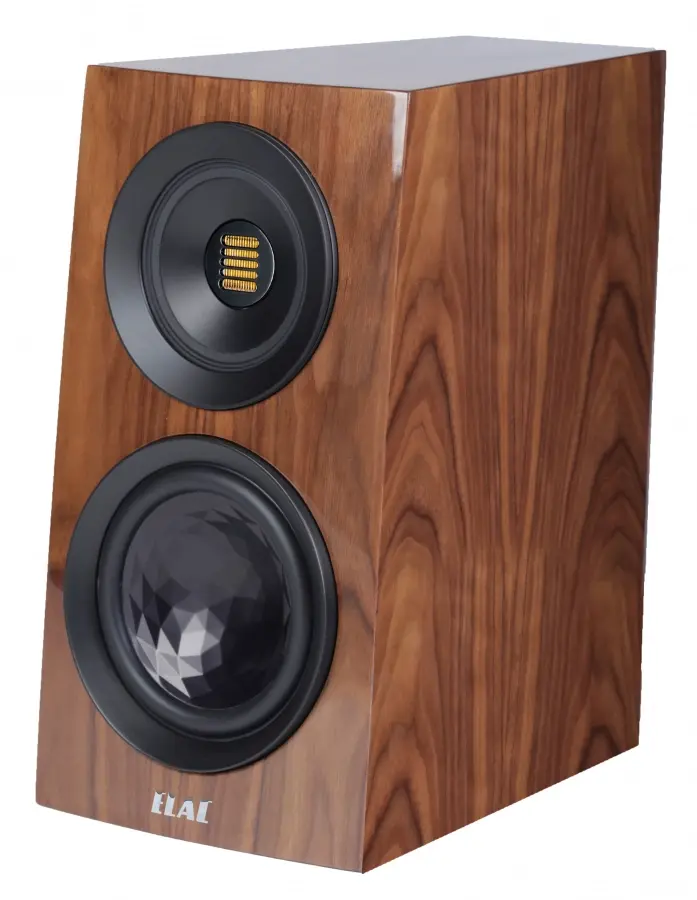

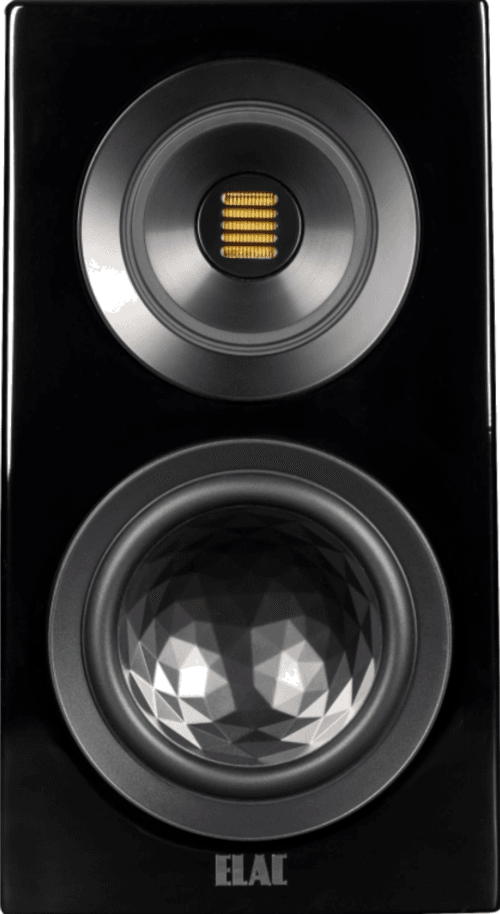

Concentro S 503.22.0
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Flagship bookshelf in ELAC's Concentro 2.0 line — the JET 6 pleated-folded ribbon tweeter sits coaxially in the centre of a 130 mm aluminium AS-XR midrange cone, paired with a 180 mm aluminium AS-XR woofer in a trapezoid cabinet with convex baffle. Three-way design with 87 dB sensitivity on a 4 Ω load, 60-500 W amp window.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #171 of 255 bookshelf |
| Power | Passive |
| Height | 400 mm |
| Width | 219 mm |
| Depth | 372 mm |
| Weight | 13.4 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (JET 6 pleated-folded ribbon), 1× 130 mm midrange (aluminium AS-XR cone), 1× 180 mm woofer (aluminium AS-XR cone) |
| Crossover frequency | 400 / 2600 Hz |
| Frequency response | 40–40000 Hz |
| Sensitivity | 87 dB |
| Impedance | 4 Ω (min 4.8 Ω) |
| Power handling | 200 W |
| Recommended amp | 60–500 W |
| MAP (USD) | $7,398 / pair |
