ELAC · Vela · Floorstander

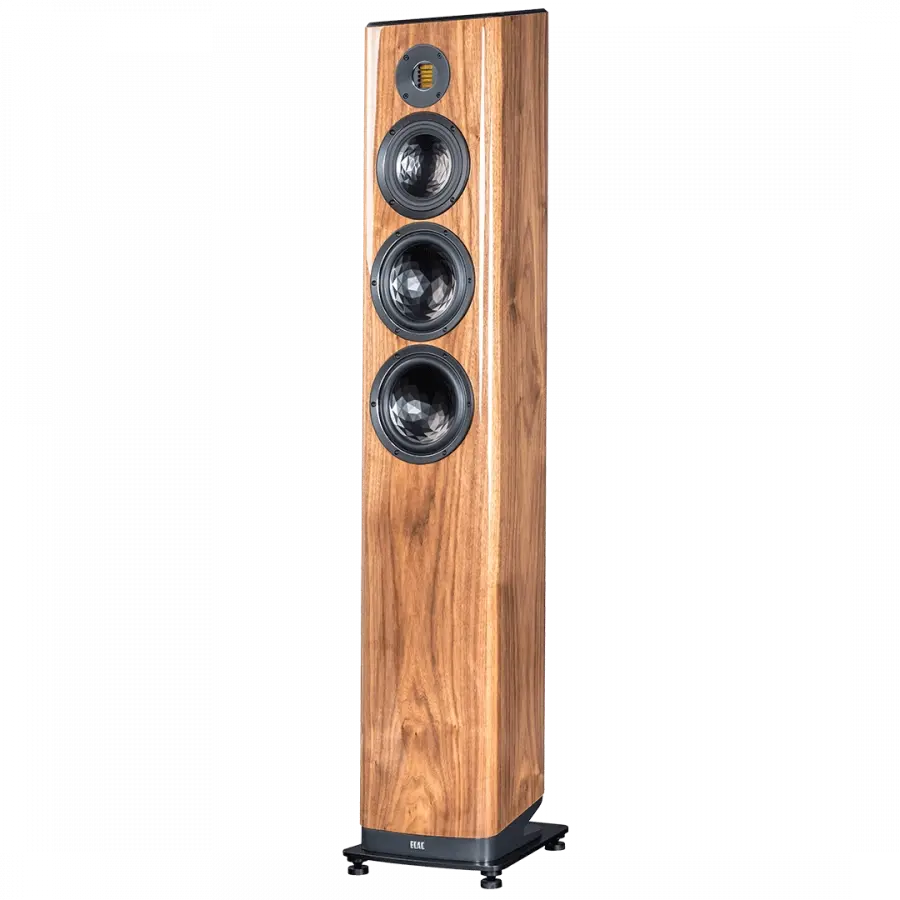

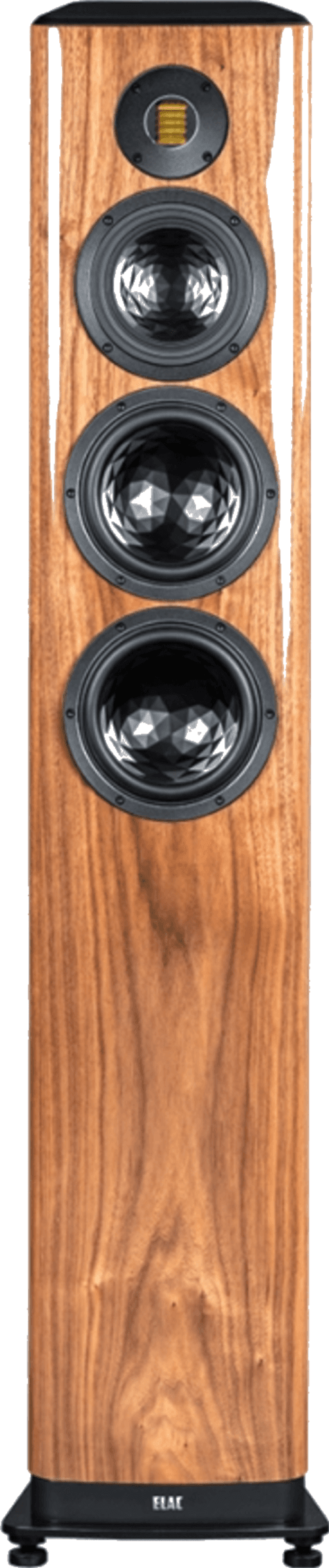

Vela VFS409.22.0
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Top-of-line Vela 2.0 floorstander — a JET 6 pleated-folded ribbon tweeter, a dedicated 150 mm aluminium AS-XR mid-woofer and two 180 mm aluminium AS-XR woofers below in a 3.5-way trapezoidal cabinet with a downward-firing bass reflex port. Reaches 28 Hz with the line's highest sensitivity (89 dB) on 4 Ω (3.4 Ω min), 40-450 W amp window.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #288 of 337 floorstander |
| Power | Passive |
| Height | 1307 mm |
| Width | 275 mm |
| Depth | 332 mm |
| Weight | 32.1 kg |
| Enclosure | bass-reflex-down |
| Drivers | 1× tweeter (JET 6 pleated-folded ribbon), 1× 150 mm midrange (aluminium AS-XR cone), 2× 180 mm woofer (aluminium AS-XR cone) |
| Crossover frequency | 140 / 360 / 2700 Hz |
| Frequency response | 28–50000 Hz |
| Sensitivity | 89 dB |
| Impedance | 4 Ω (min 3.4 Ω) |
| Power handling | 280 W |
| Recommended amp | 40–450 W |
| MAP (USD) | $8,398 / pair |
